Soaking Option (No Jetting)
To view all jetting options, click on the “Therapy Options” tab.

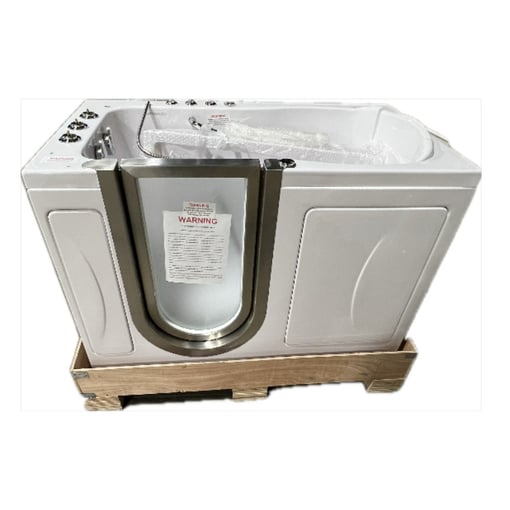

The walk-in tub shell of the Elite is constructed with premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with fiberglass gel coat layers. The nonporous acrylic surface is easy to clean and impermeable to mold and mildew. A textured floor, low step-in threshold, one deck and one wall mounted U-shape stainless steel grabs in a chrome finish, enhance your safety and allow quick and safe entry and exit in and out of the tub.

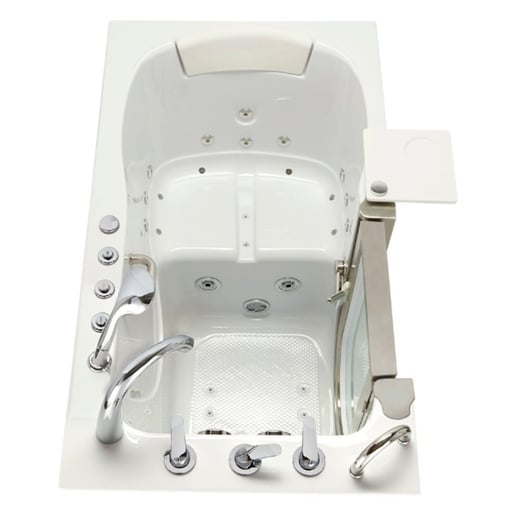

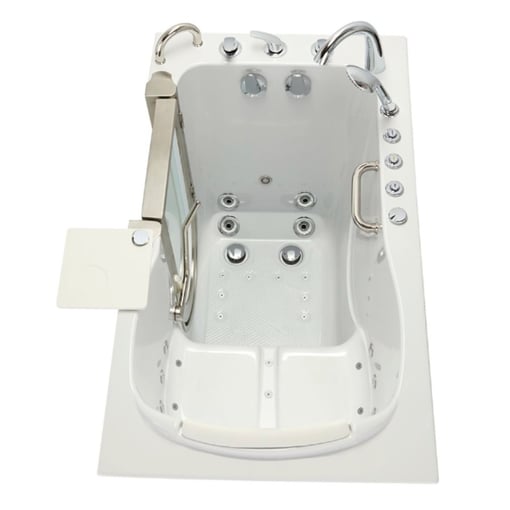

This standard size walk-in tub measures at 30”W x 52”L and has a spacious 22” wide seat. The Elite’s main feature is the door which is made from beautiful, custom brushed stainless steel with a frosted tempered glass window to give it a sleek, contemporary look. The door is 16 ½” wide, and swings into the tub to allow the bathers to easily enter and exit the tub without being in the way of other bathroom fixtures such as a toilet or vanity. These inward swing doors are also easier to close once inside the walk-in tub. The extended stainless steel door lever was uniquely designed to bypass the bathers’ leg when locking and unlocking the door in a seated position. The lever lock, along with the door gasket, creates a secure and watertight door seal, providing you with a safe, leak-free bathing experience. Another key feature available on all Ella inward-swing door models, is our patented detachable 360° swivel tray.
The Elite comes with one of the best and exclusive features: Dual Drain Technology, consisting of two independent 2” gravity driven drains with four 2” outlets, 2 overflows and 2 drain openers, allowing for a fast and reliable drainage. 2 caps are also included to cover up to 2 of 4 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping provided by a professional plumber. It is suggested to connect all 4 outlets to the house drain for the fastest drainage possible. Typical drainage time is approximately +/- 80 seconds for this standard size tub within ideal in-home plumbing conditions. Ella gravity driven dual drains are fast and reliable because they do not require an electric pump, whereas electrical driven drains may fail due to electrical shorts or power outages.
This model also includes one reversible end panel for left or right corner installation options. The reversible end panel is used to cover the end of the tub that is exposing the walk-in tub shell. An additional end panel can be ordered if your tub will be installed against the wall with both ends exposed.
Warranty
We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.
Note: LED Chromatherapy light is included with any dual jetting or therapy package.
Examples: air & hydro, hydro & hydro, Hydro & Microbubble therapy
The Elite model offers 4 jetting & therapy options: 1) Hydro; 2) Air & Hydro; 3) Hydro & Microbubble Therapy; 4) Hydro & Independent Foot + Calf Massage. The Elite is also available in a soaking option without jets.
Please view the descriptions of the different therapy options below, or click on the PDF links to see schematics for easier understanding.
3. Hydro + Infusion™ MicroBubble Therapy
Download Schematics: Hydrotherapy Massage + Microbubble Therapy
4. Hydro + Independent Hydro Foot Massage System
Download Schematics: Hydrotherapy + Independent Hydro Foot Massage
Therapy Options + Heated Seat & Back Option
Download Schematics:
1. Hydrotherapy + Heated Seat & Back
2. Hydrotherapy + Air + Heated Seat & Back
3. Hydrotherapy + Microbubble Therapy + Heated Seat & Back
4. Hydrotherapy + Independent Hydro Foot Massage + Heated Seat & Back
1. Ella 2 Piece Fast-Fill Faucet
The Ella 2 Piece Fast Fill Faucet with pull out multi-function hand shower is perfect for your walk in bathtub or any bathtub where fill time matters. The fast fill 2 piece fills at a rate of up to 18 GPM (gallons per minute) based on in house plumbing conditions. If desired, the pull out hand shower can be used for shower while the bathtub is filled to stay warm. Available in a Chrome or Brushed Nickel finish.
Disclaimer: Only the faucet can be ordered in brushed nickel. All other fixtures, including jets, drain openers, and grab bars, will be in chrome.
2. Complete Shower Column Kit For Deck Mounted Faucets
The Shower Column Kit connects to a diverter on an Ella brand 2 or 5 piece deck mounted faucet in order to create an extended overhead shower. The stainless steel, chrome finish column can be effortlessly adjusted up to 7 feet tall. Along the column is a vertically movable, 5 mode multi-functional hand shower, and attached at the top is an oversize rain shower that can be directed with ease to the seat for a seated shower or footwell for a stand up shower. This shower column kit replaces the need for a wall-mounted showerhead.
1. Controller Options
We offer two control options: Push Control or Digital Control. Our Push Controls are easy-to-use push down buttons that will operate your chosen jetting and any additional features.
The digital control is our more modern option, giving you a digital keypad from which to control your jets and additional features such as Chromatherapy LEDs and heated seat & backrest. Since the Digital Control is smaller, it may be more difficult for elderly to see and operate.
2. Ella 4-Fold Glass Shower Screen in Chrome Finish for Walk-In Tubs
The Ella brand 4-fold shower screen is the best option in the industry for walk-in tubs because of the foldable feature that’s not offered with a standard shower glass or curtains. This gives bathers an airy, open feeling with the option to easily push the screen aside. The lightweight glass, secured in an aluminum frame with quality gear hinges, is sturdy enough to endure rigorous daily use. Additionally, one of the 4-fold sections can be removed to create a 3-fold shower screen.
3. Standard Seat Pillow Riser
The Standard Seat Pillow Riser is designed to cover the bidet jets found in your Ella walk-in bathtub. This luxuriously thick pillow is incredibly comfortable and can be used as a riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.
4. U-Shape Seat Pillow Riser
Our dual massage walk-in tubs have two air jets in the center of the seat. The U shape pillow is designed to accommodate these two bidet jets. If you want to cover bidet jets, you can utilize the regular seat pillow. This luxuriously thick pillow is incredibly comfortable and can be used as riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.
5. Headrest & Neck Support
Increase your comfort with the Ella Walk-In Bathtub Headrest. The headrest can be mounted on the wall or on the deck using attached suction cups.
Ella Elite Walk-In Tub with Shower Column & 4-Fold Shower Screen
The best fast drain in industry – no power needed! Ella’s gravity-driven 2″ dual drain tech with 2 independent openers, 2 overflows ensures swift, reliable drainage from the walk-in tub. Connect to 4 x 2″ outlets vs. 1 standard 1 1/2″ tub drain. Details in product page downloads or at Dual Drain Technology. Enhanced for optimal performance and efficiency, making it a standout choice for modern homes.
Ella walk-in tubs are equipped with 4 adjustable foot jets and 2 adjustable calf jets for maximum relaxation. These jets are strategically positioned in the lowest possible area of the floor for bathers to enjoy a powerful foot massage in a relaxed position. No need to fill the whole tub, the foot well fills in just a couple of minutes!
One of the best features we added to this line of walk-in tubs is our patented 360° swivel tray. Whether it be a beverage or a book, you no longer have to worry about where to put the items that aid in your relaxation. This unique swivel tray adds a touch of additional convenience to complete any bath. This is available for the Elite, Royal, Petite, and the Ultimate models.
