Transfer32 Wheelchair Accessible Walk-In tub – 81x132cm (32″x 52″) , Dual Drain Technology
£4,709.00 – £8,917.00
Readers Digest
Ella Transfer32, being 2 inches wider than the Transfer30, accommodates larger body types comfortably, featuring a roomier 24-inch wide seat. This model features a
Choose Included Features
Select a tab below to learn more ▼
Soaking (No Jetting)
Customers consider the L shape door over the U shape door because navigating within the walk-in tub is more comfortable and spacious when the door swings out. However, if objects in your bathroom prohibit you from opening an outswing door, please consider an inward swing walk-in tub.

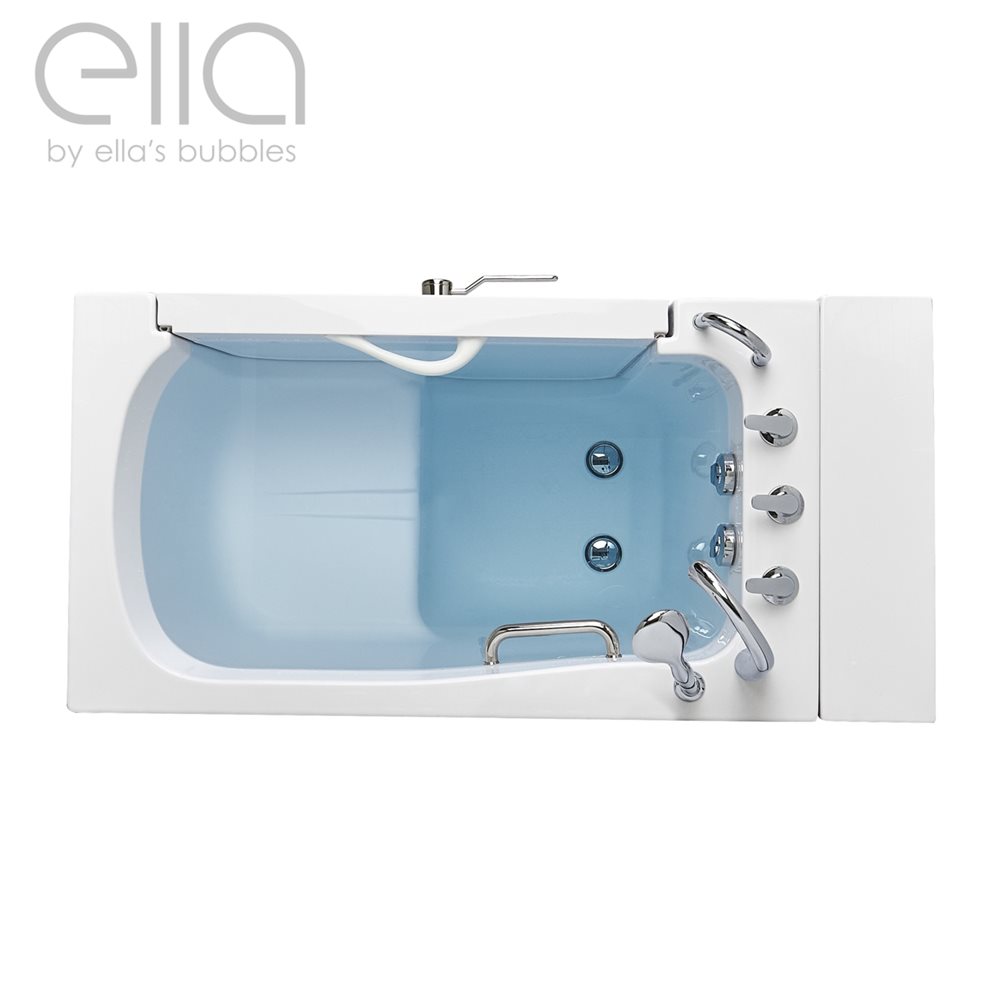

The walk-in tub shell of the Transfer32 is constructed with premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with fiberglass gel coat layers. The nonporous acrylic surface is easy to clean and impermeable to mold and mildew. A textured floor, low step-in threshold, one deck and one wall mounted U-shape stainless steel grabs in a chrome finish, enhance your safety and allow quick and safe entry and exit in and out of the tub.

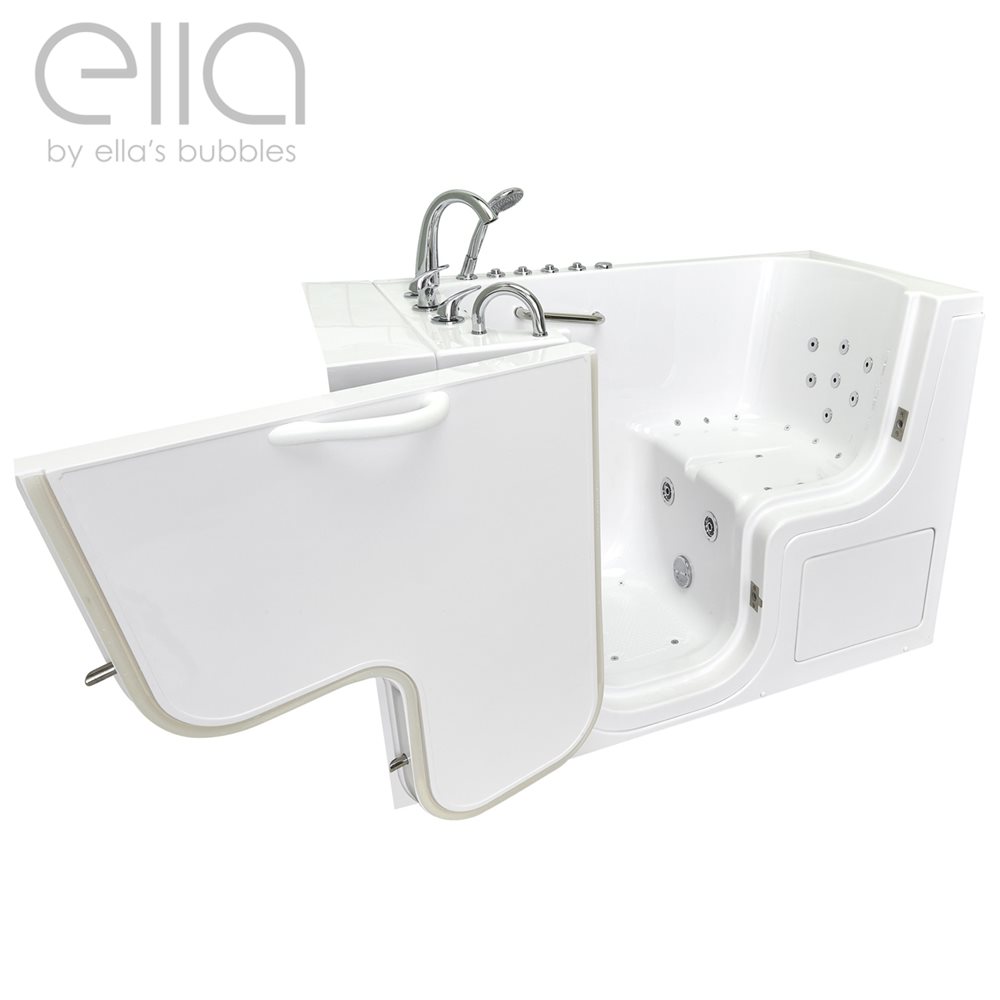

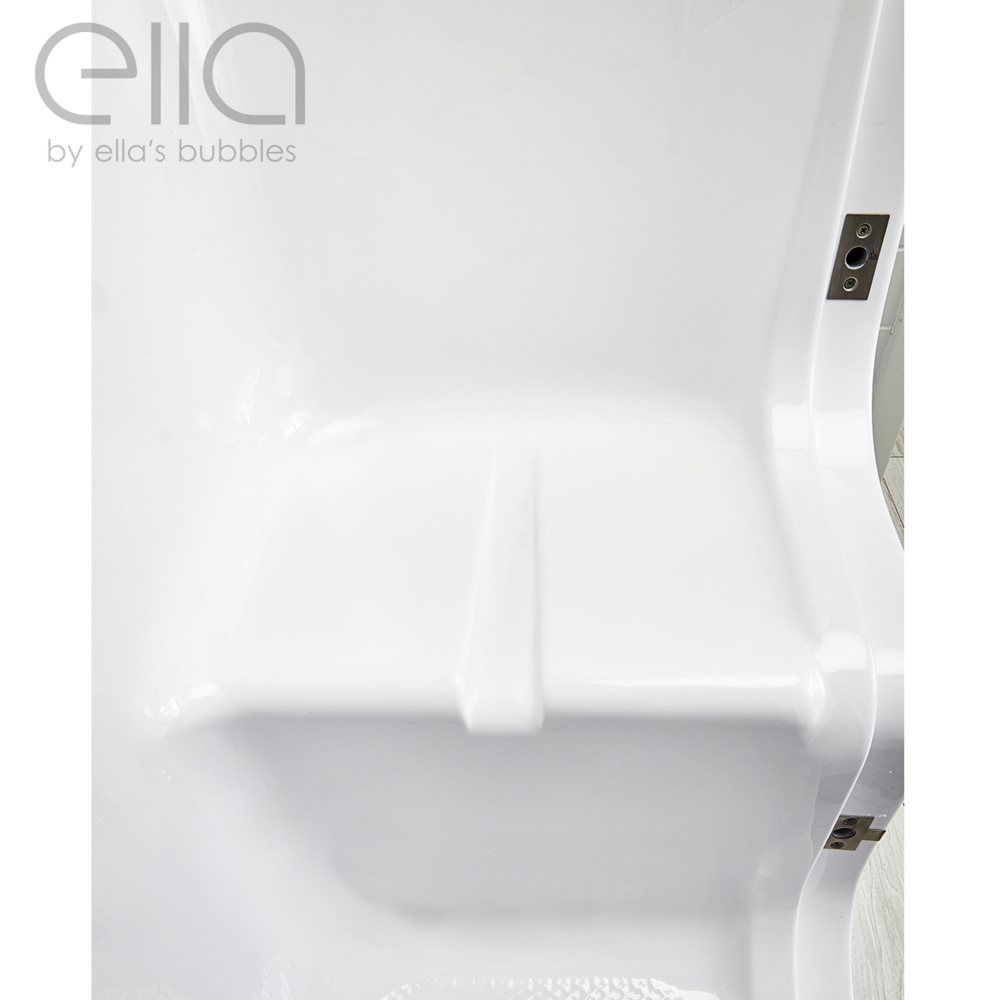

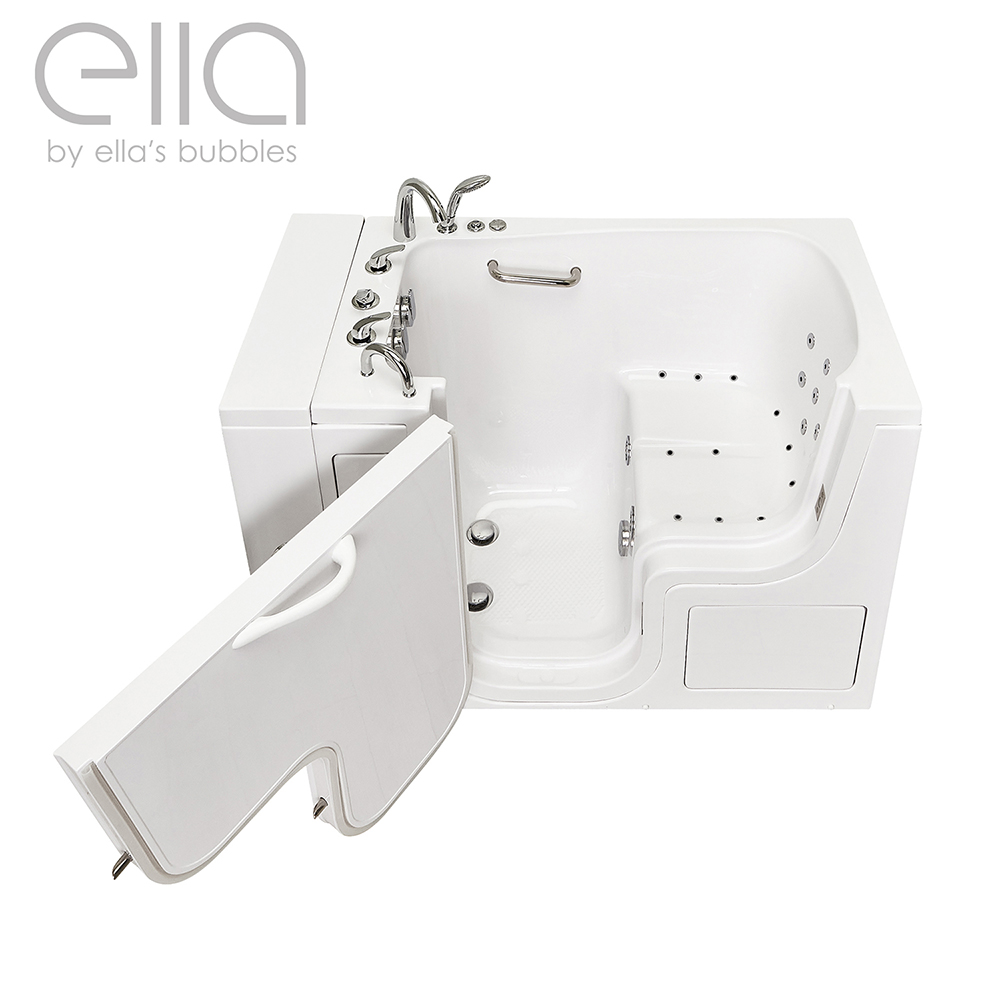

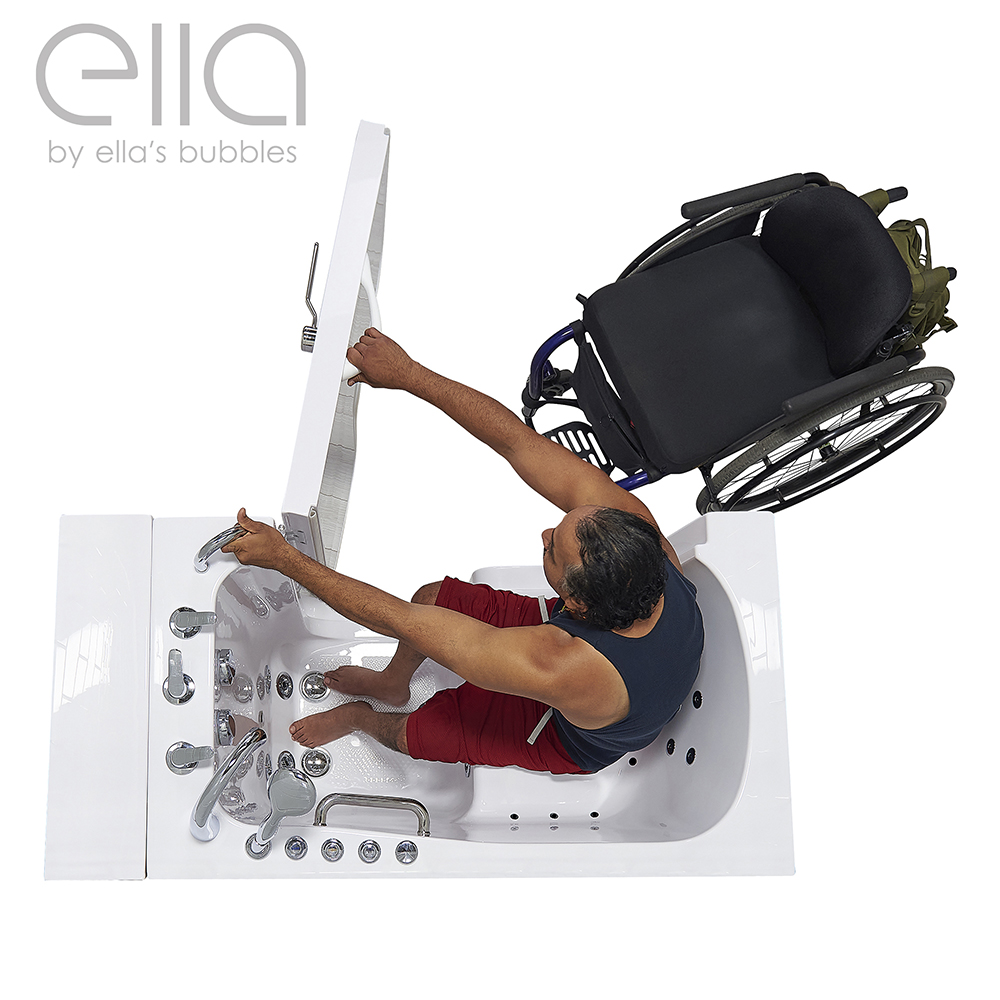

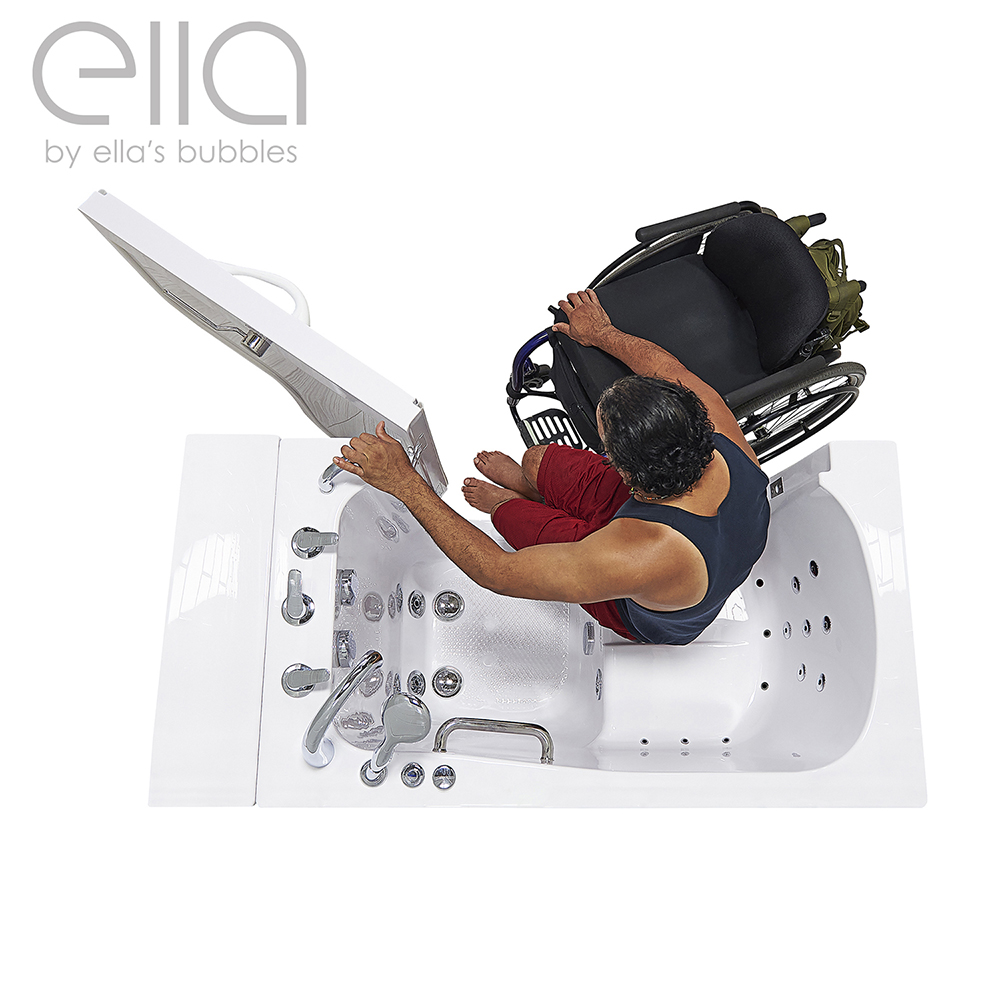

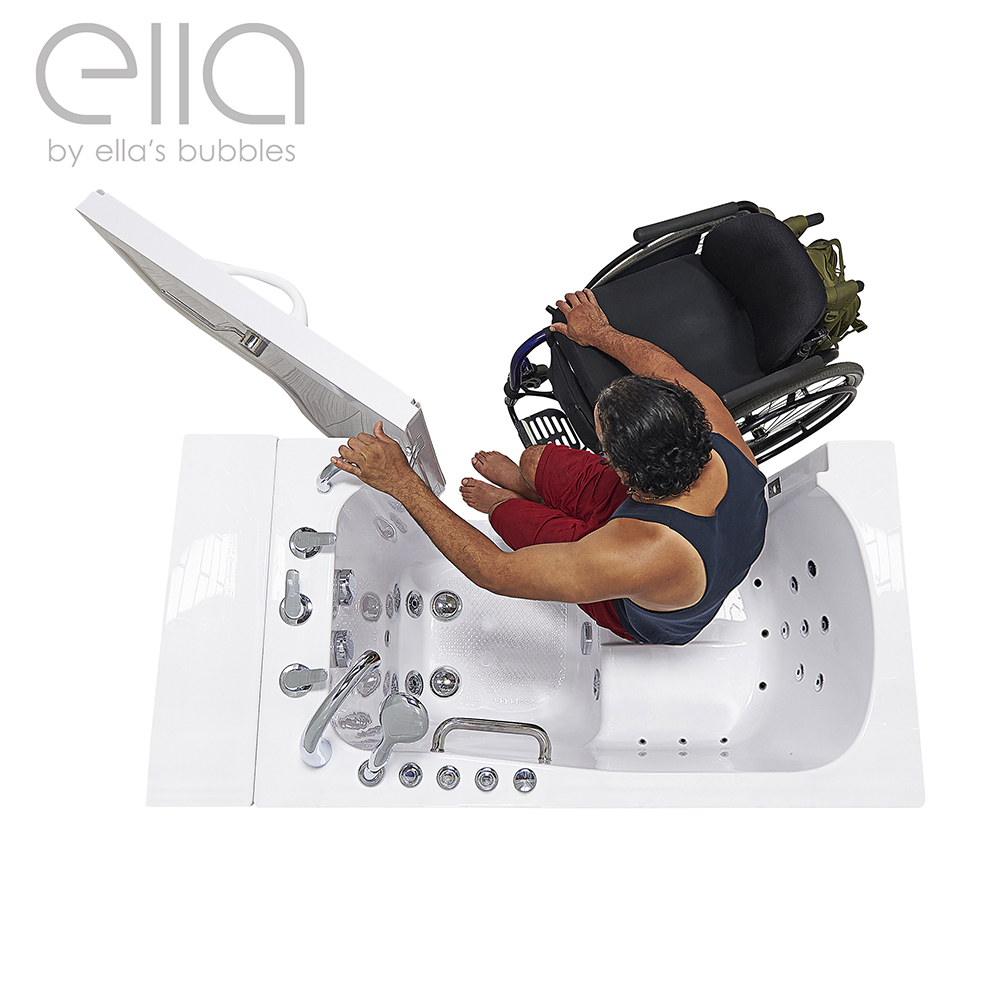

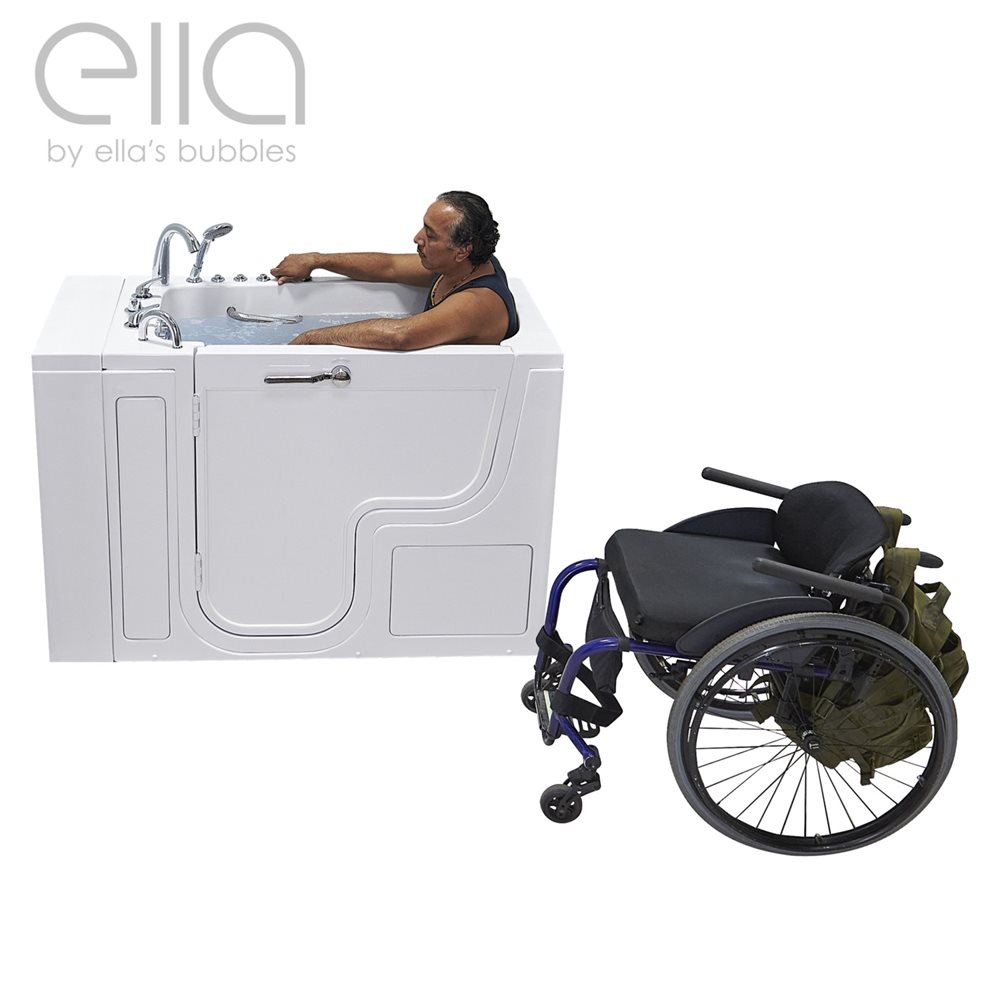

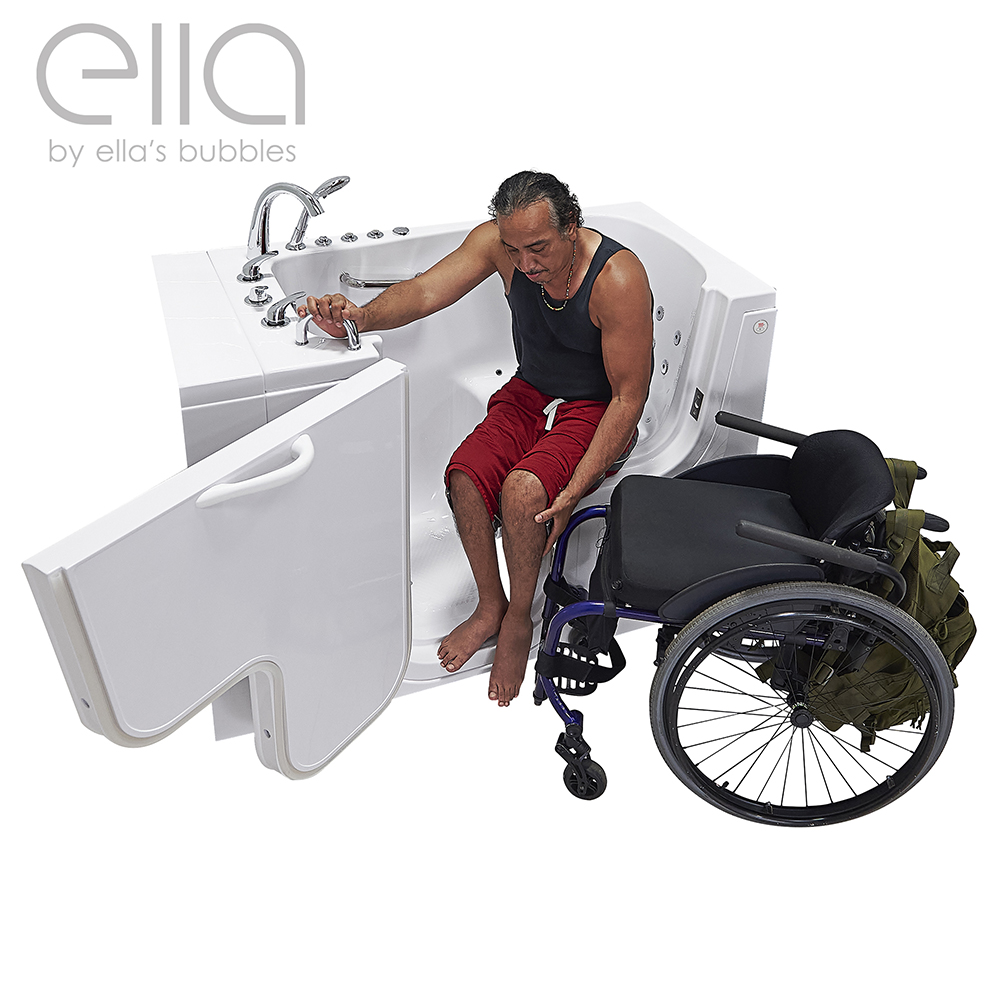

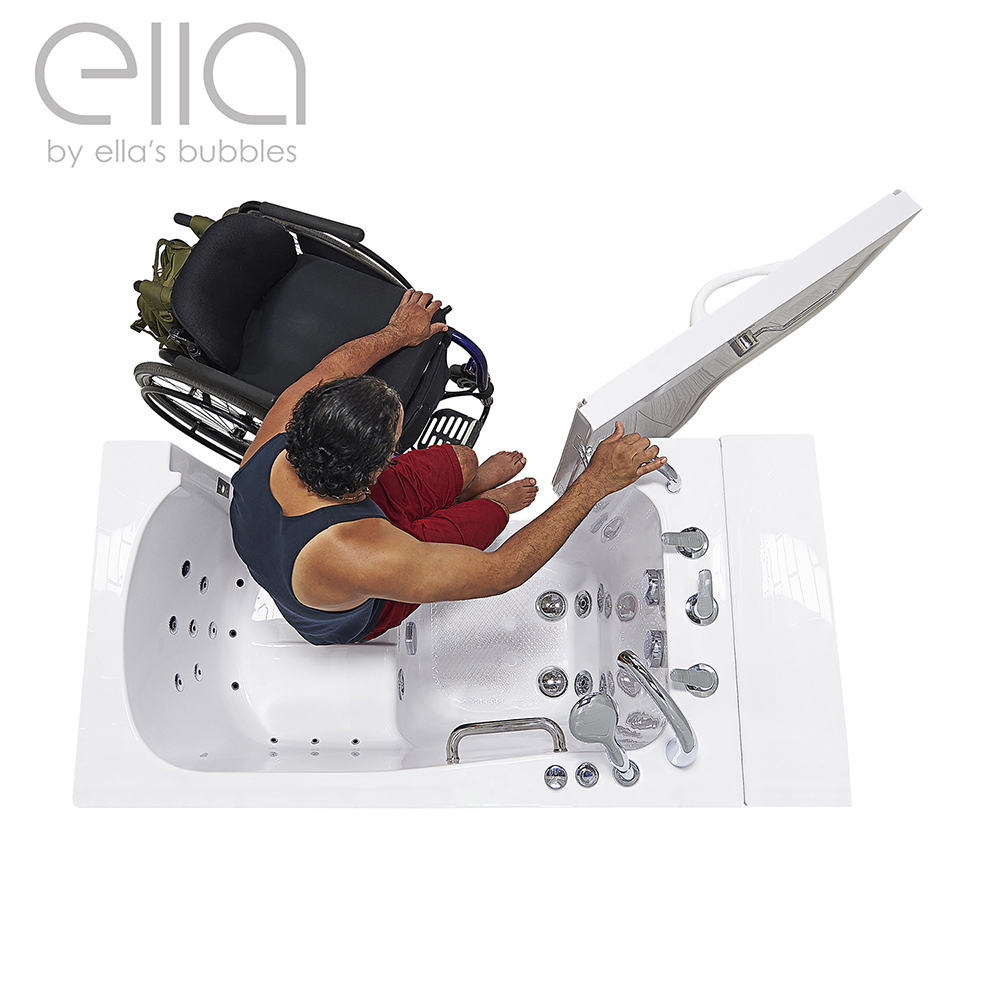

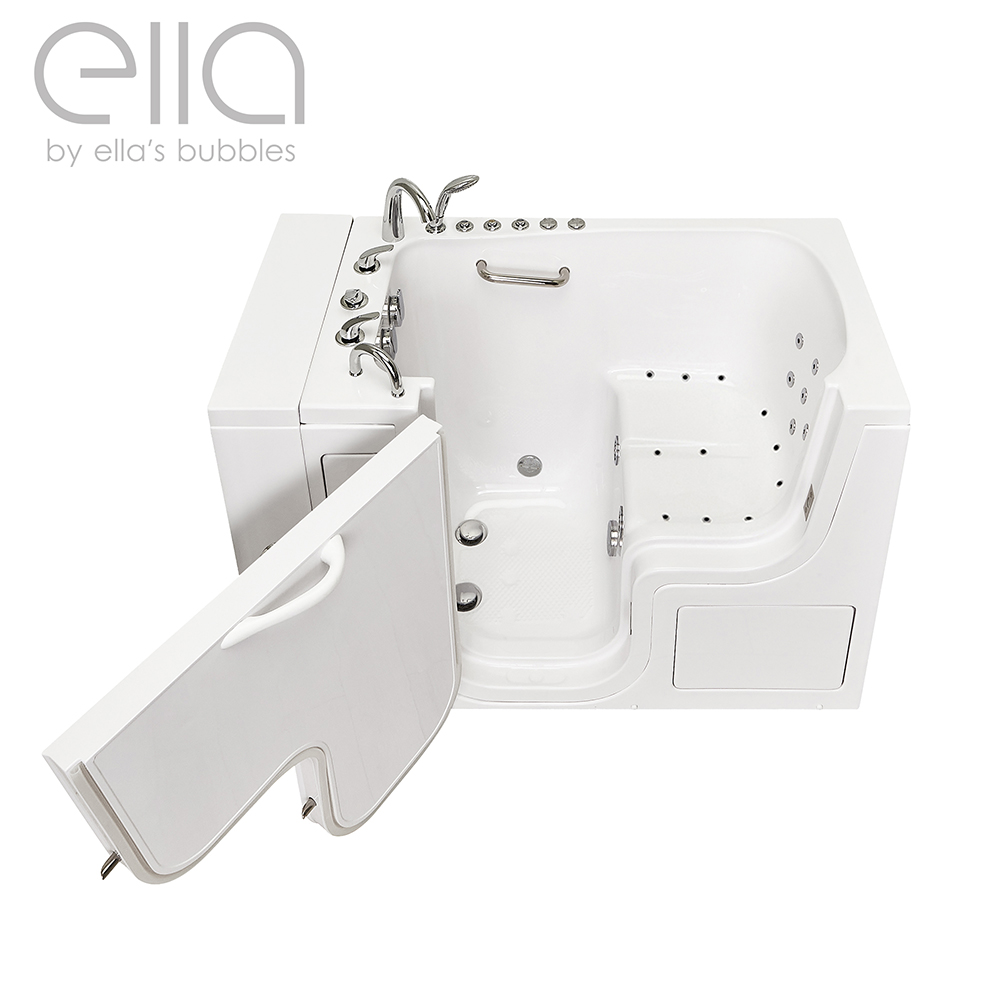

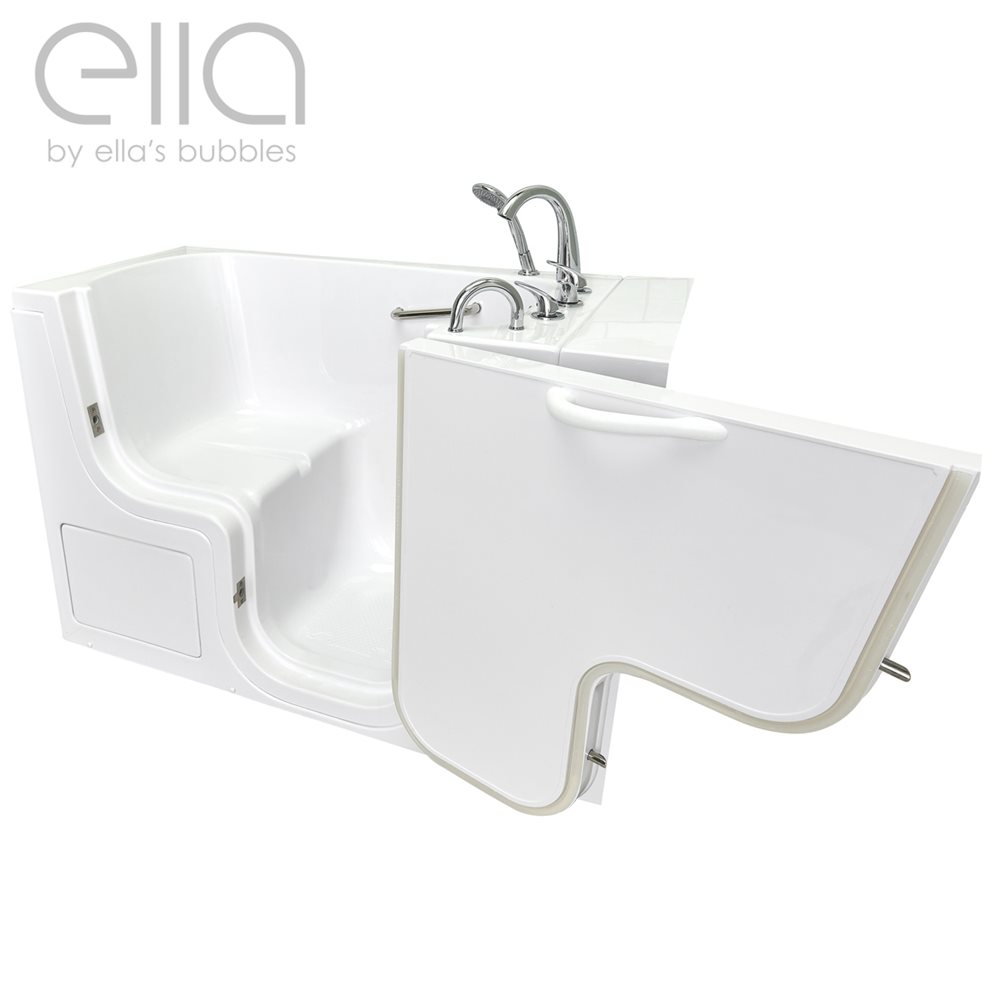

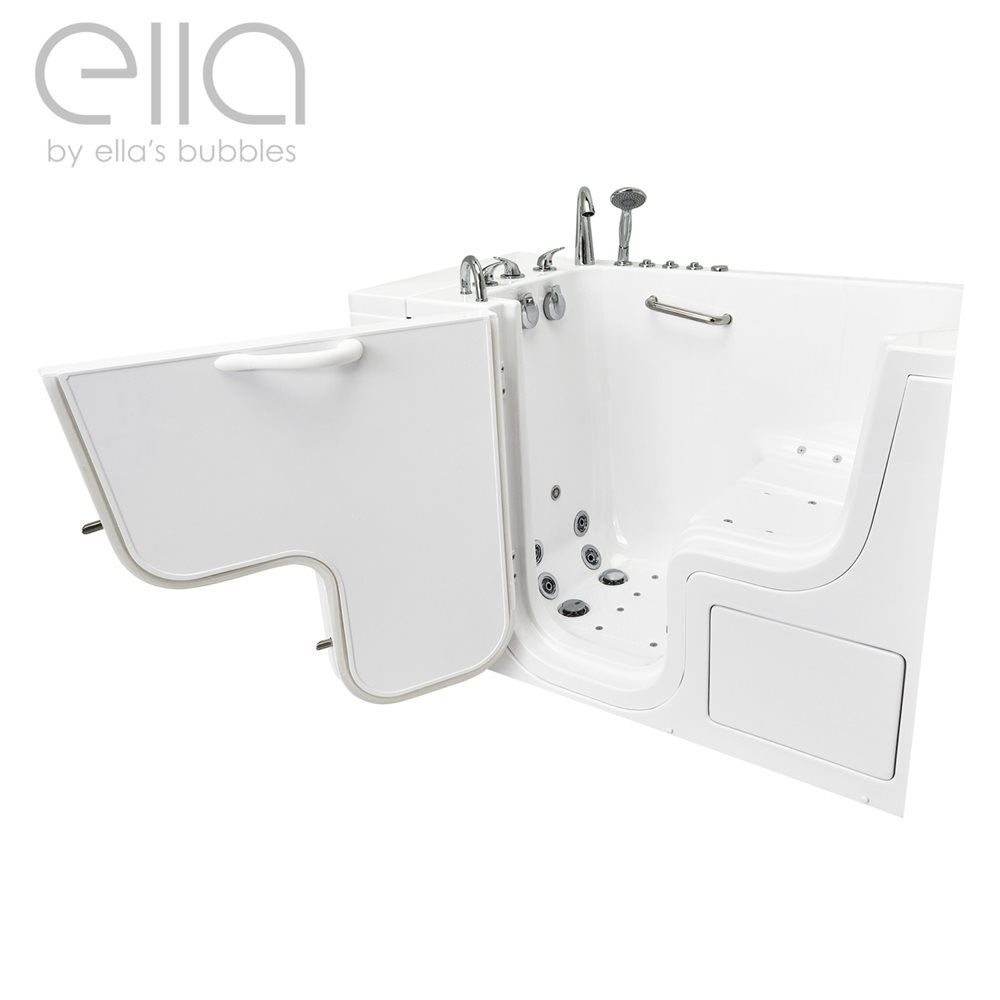

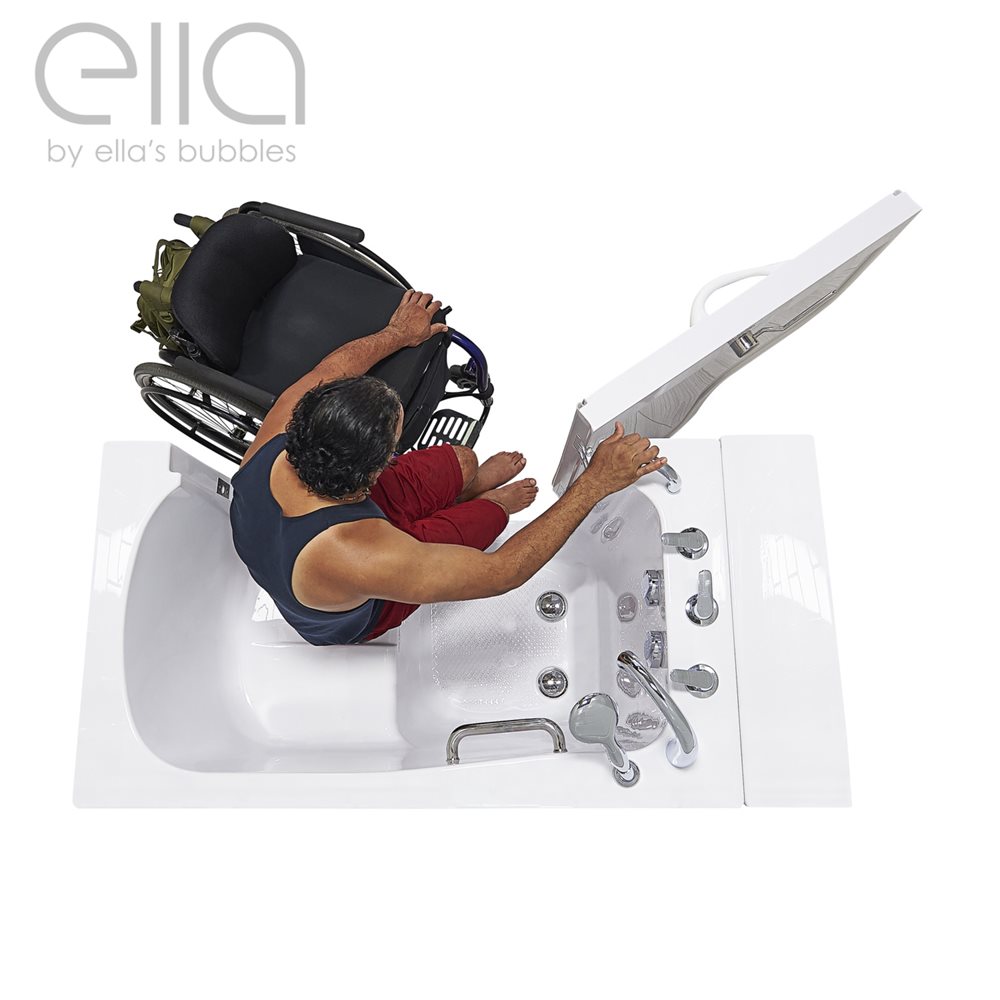

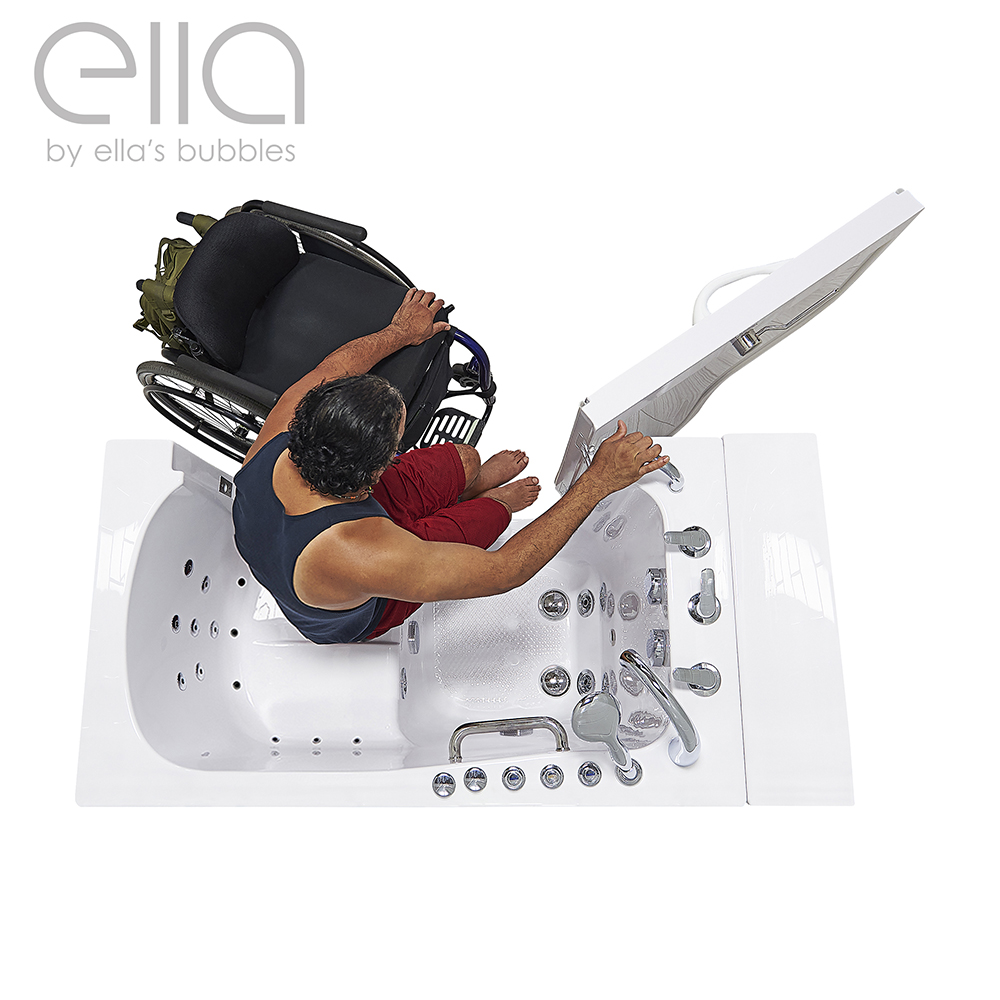

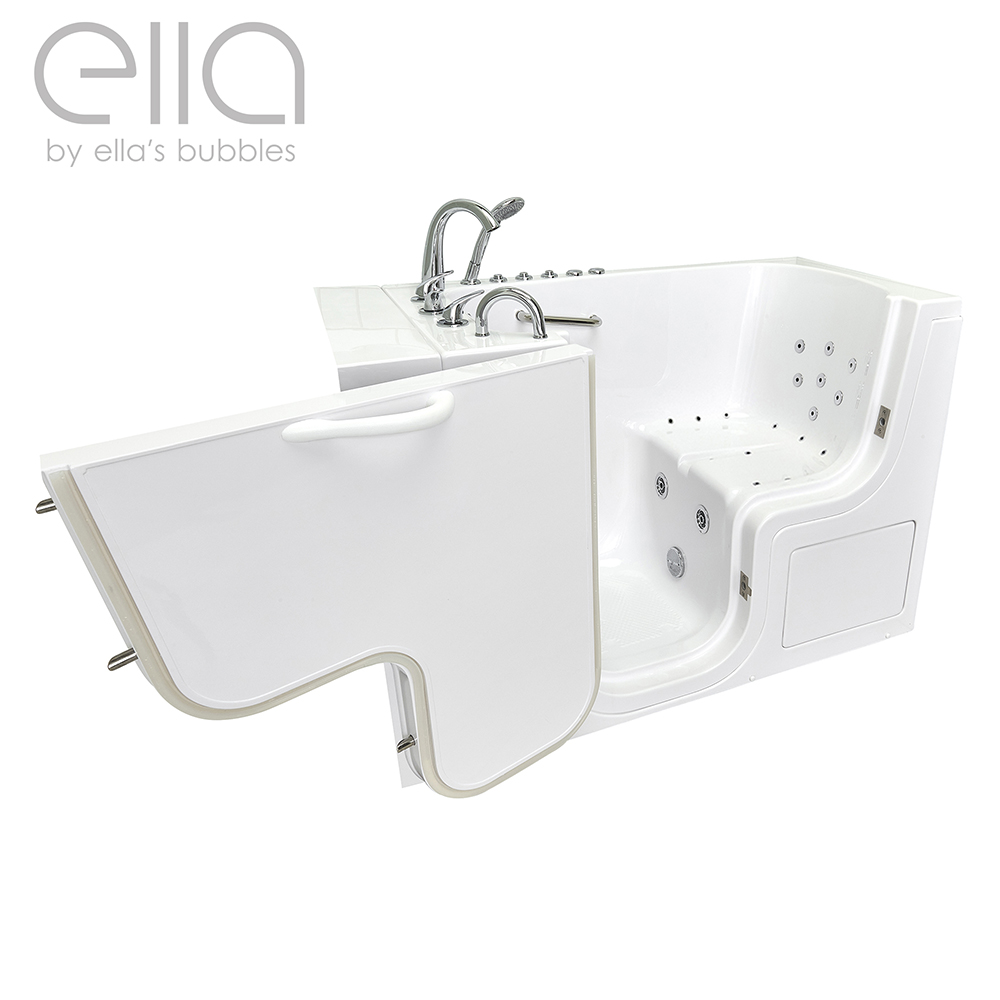

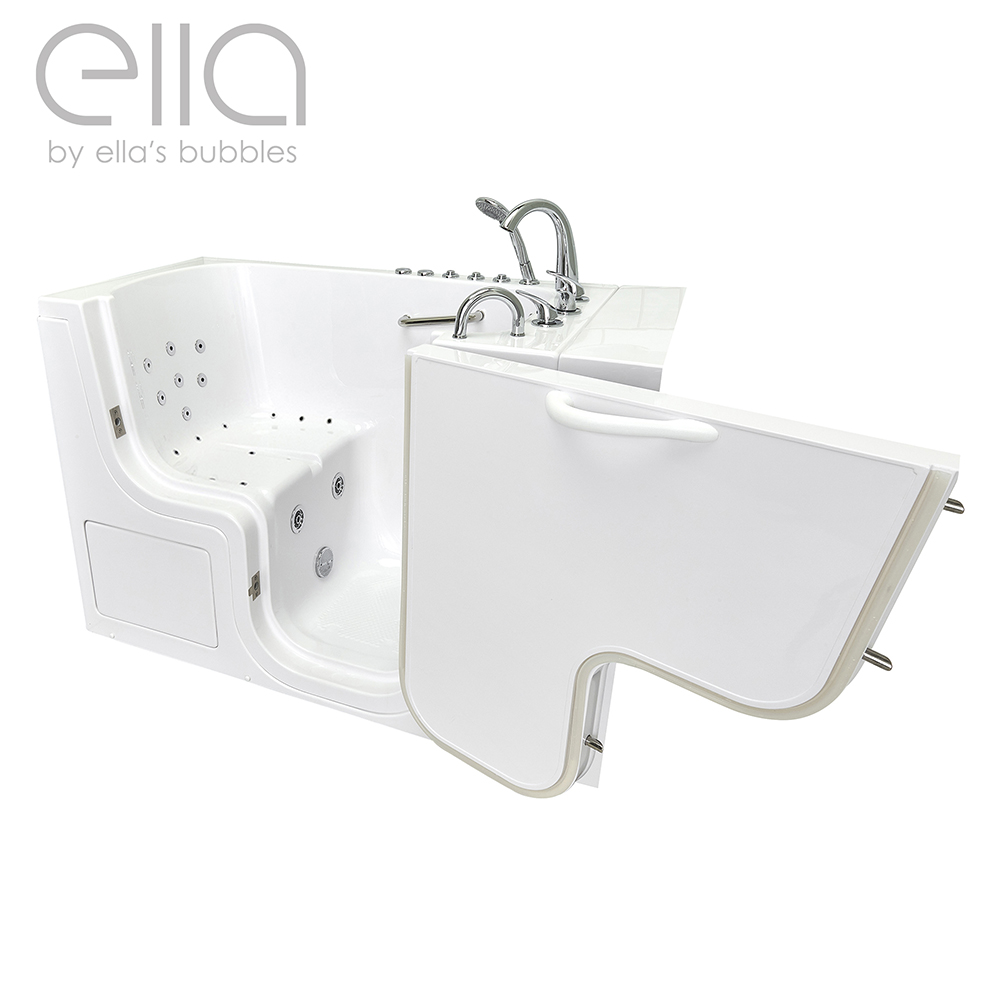

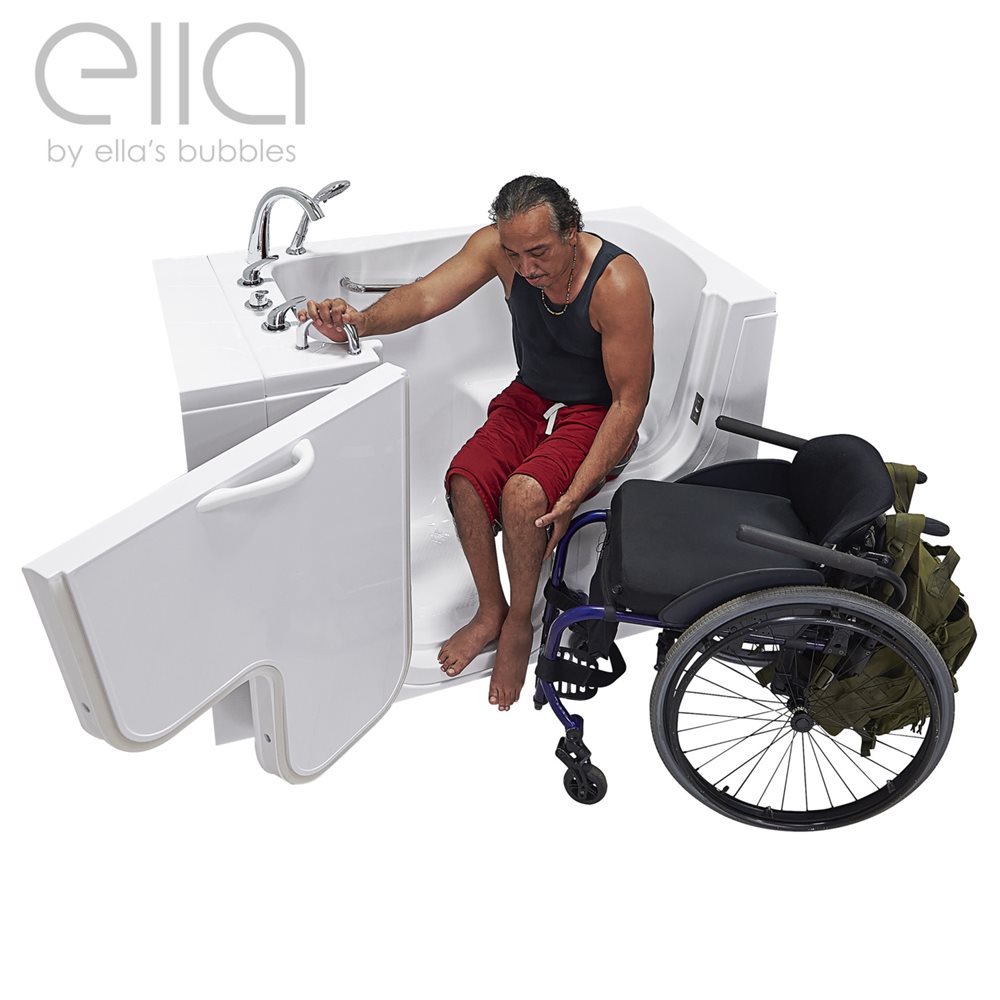

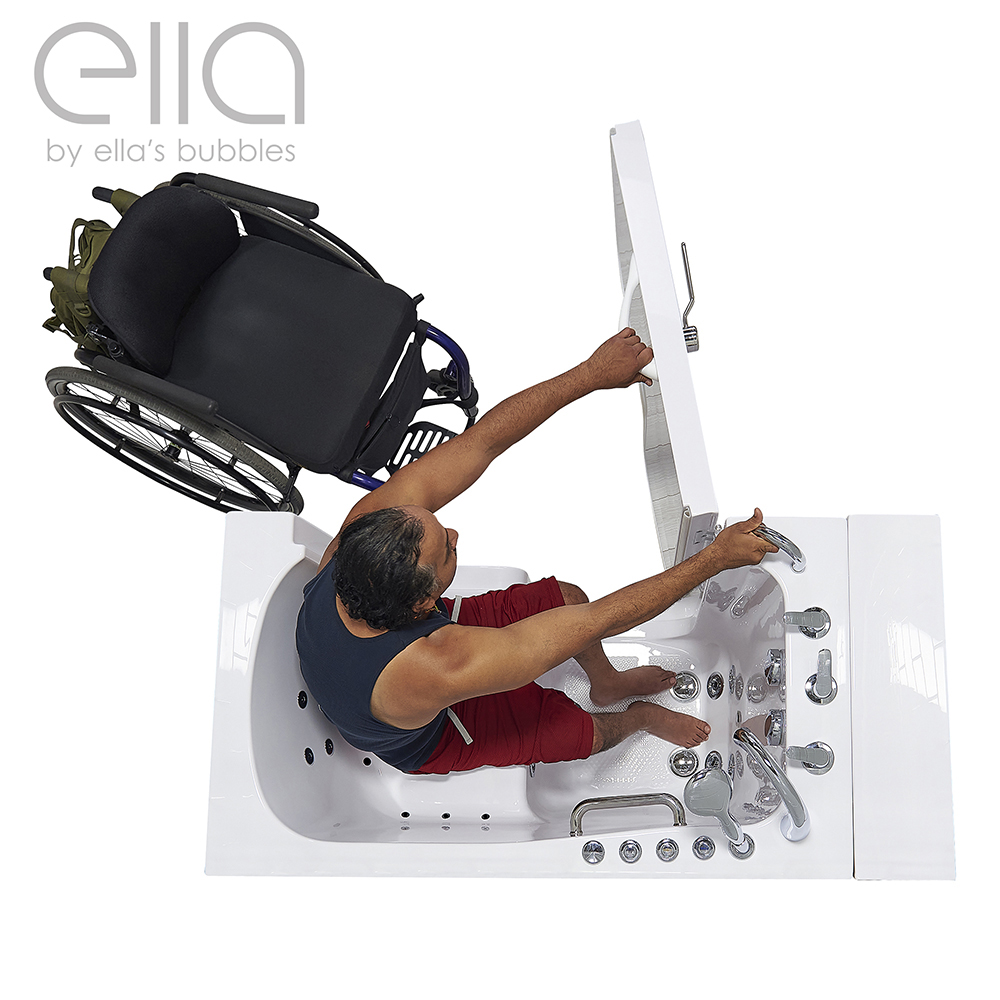

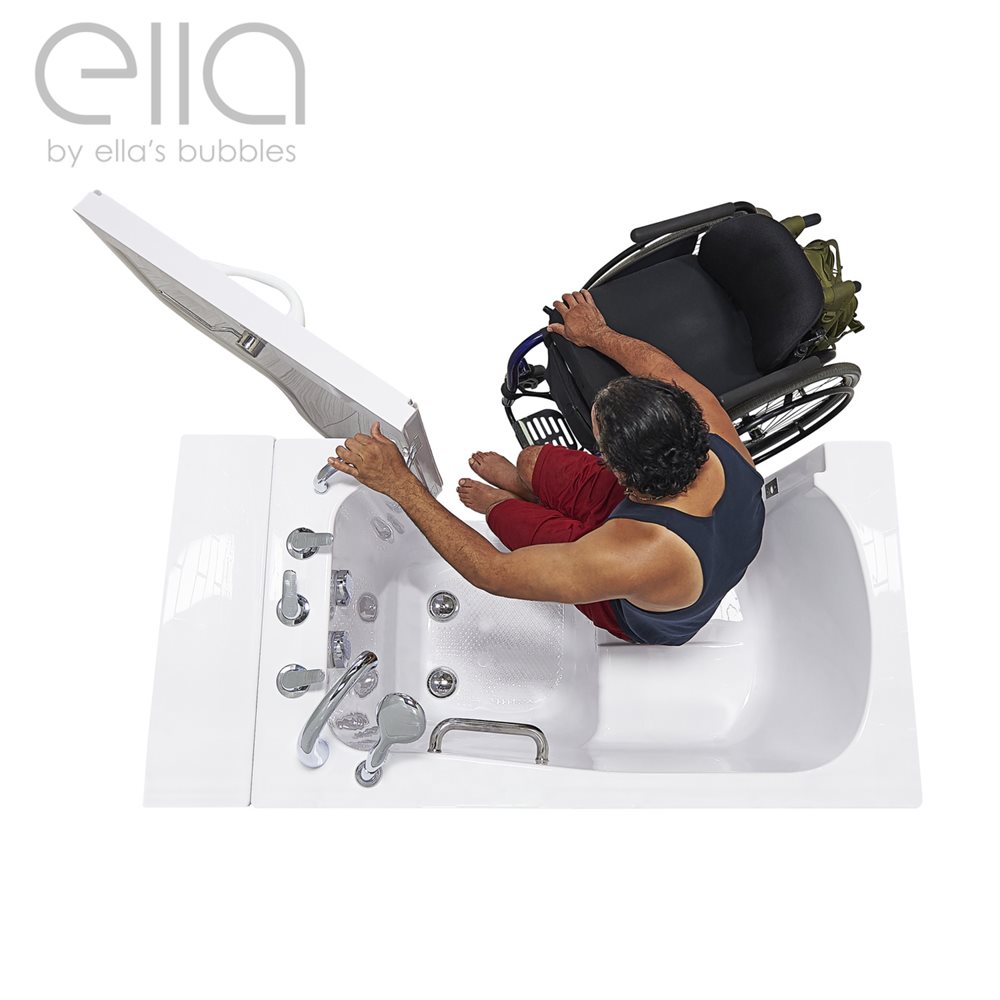

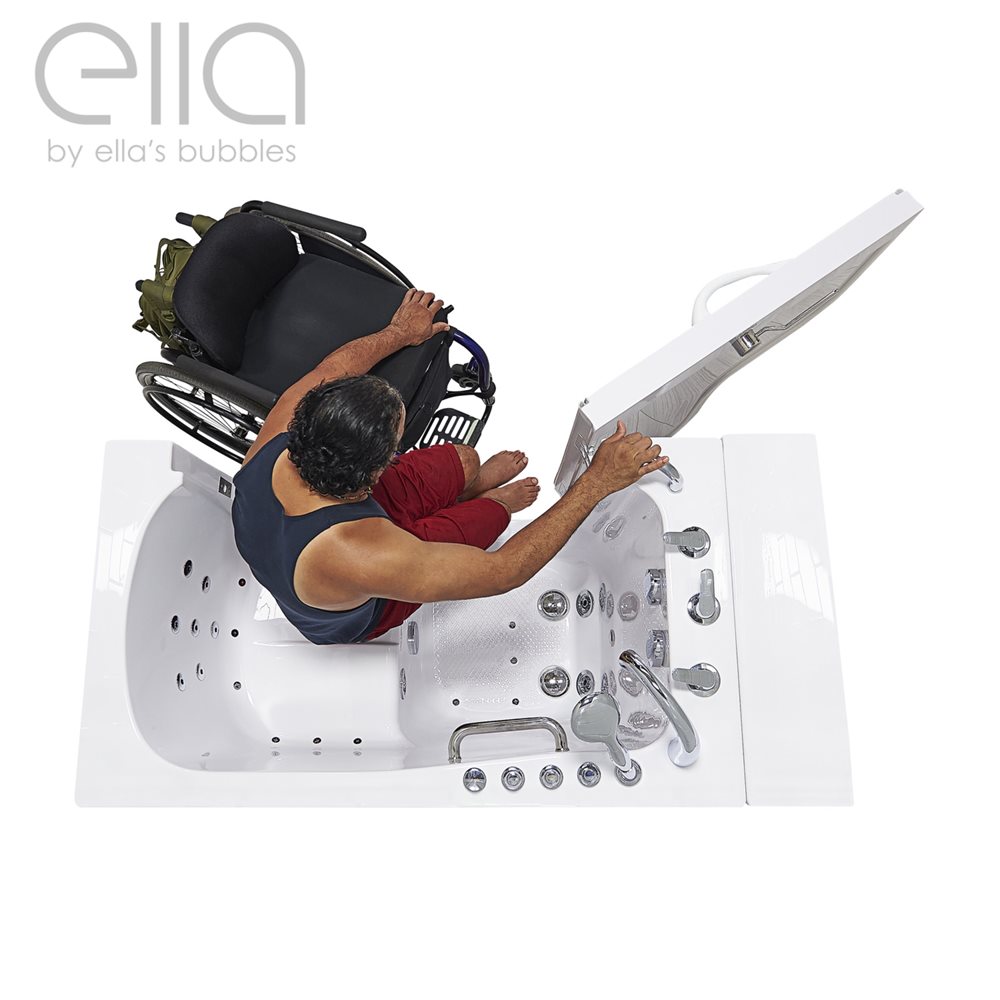

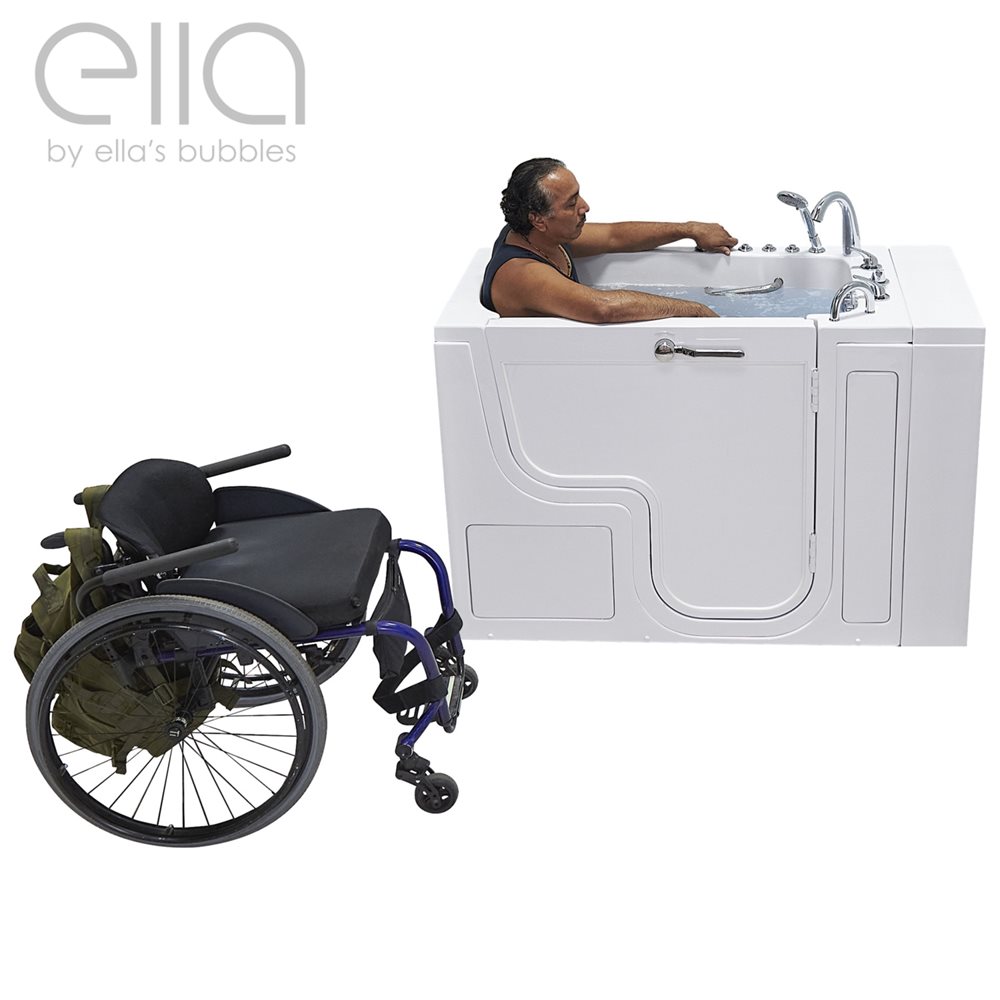

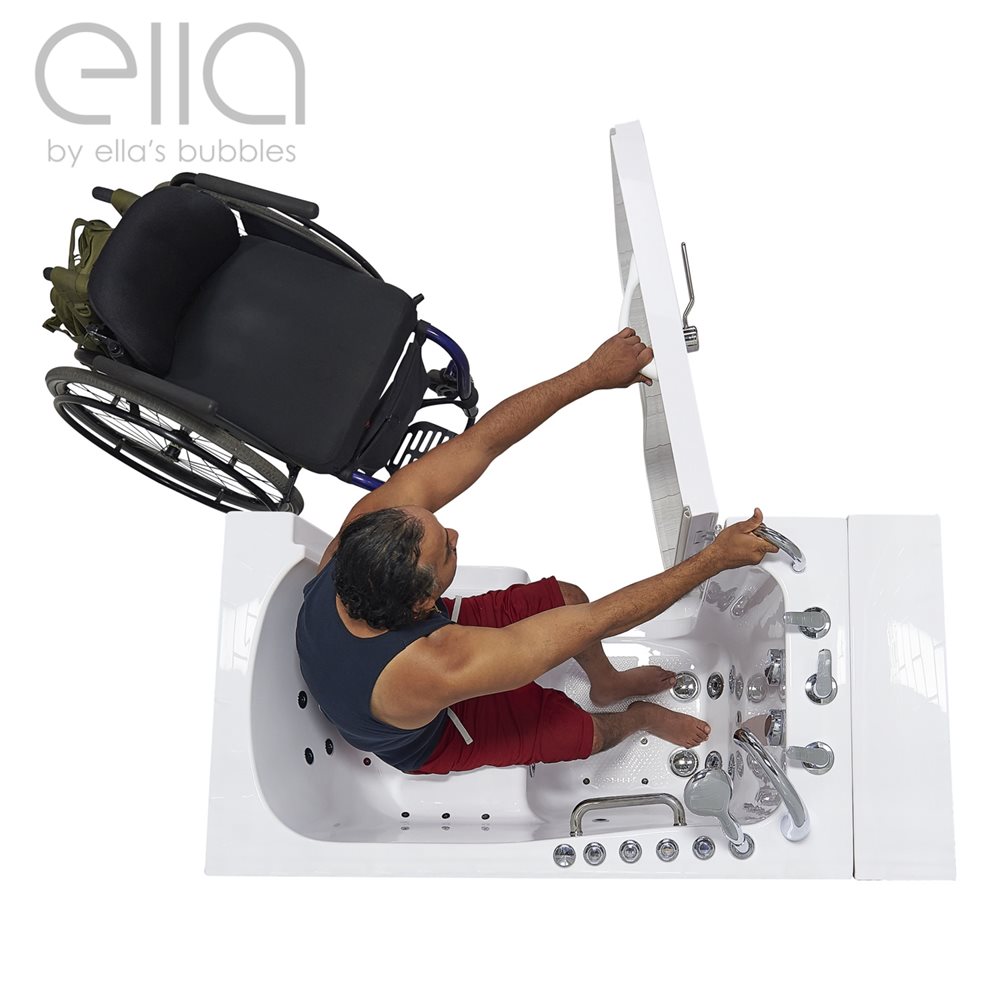

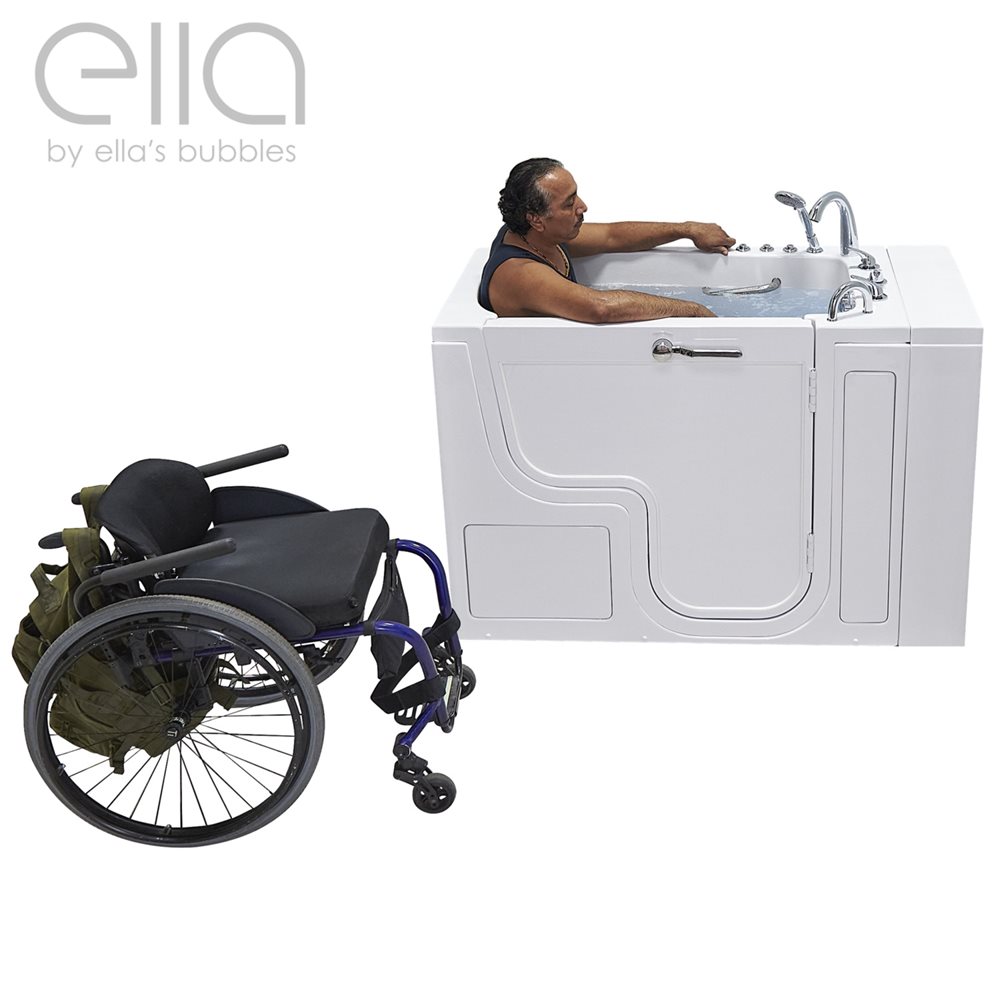

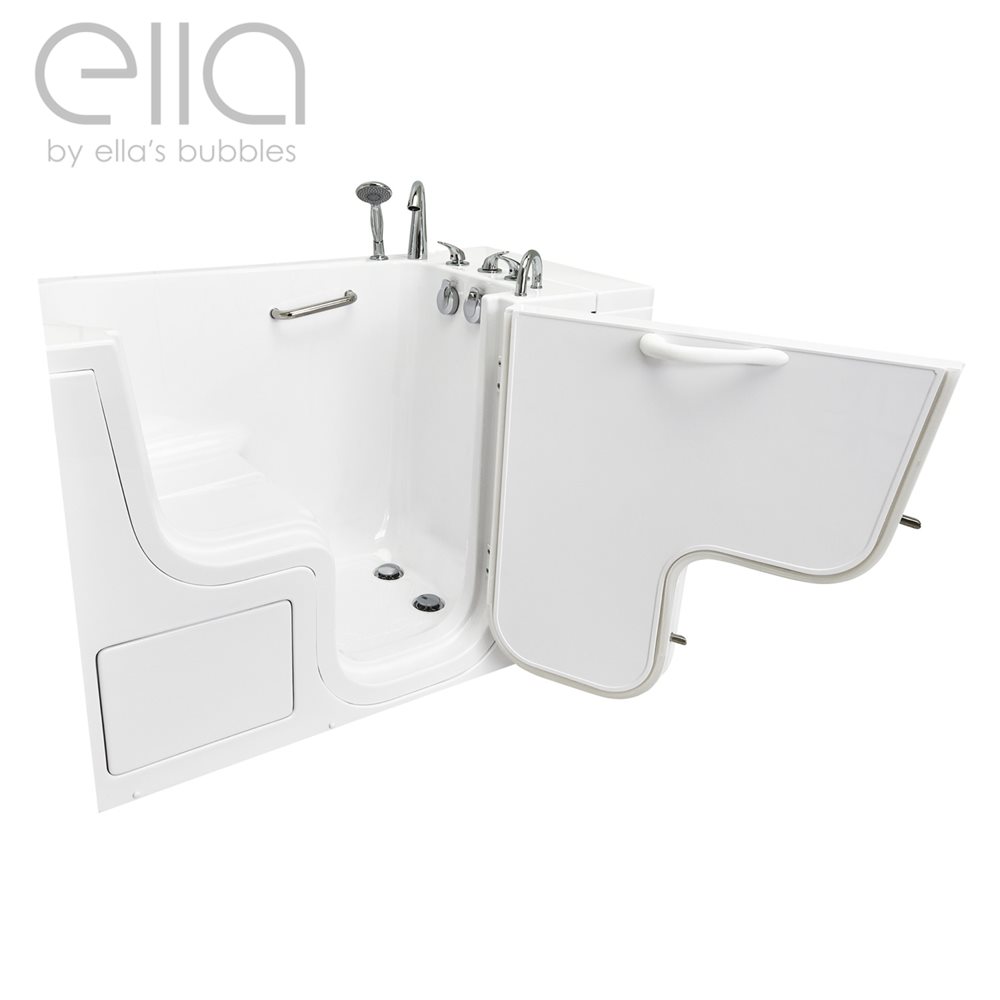

This standard walk-in tub measures at 32”W x 52”L and has a comfortable 24” wide seat. The Transfer32’s main feature is the door which is made from aluminum L-Shape Outward Swing Door The door is 36” wide, and swings outward from the tub to allow the bathers to comfortably enter and exit the tub. The door’s distinct L-shape and the engineering of the outward swing allows the door to clear a 21” tall toilet and create a wide entry for an easy transition from wheelchair into a smooth acrylic seat. The sleek rubber handle mounted on the inside panel of the door aids in closing the door. The outswing door is equipped with a unique gear and shaft driven, 2-latch door lock system concealed with an acrylic decorative cover. The 2-latch system creates a more secure and watertight door seal, edging out our competition who typically use a single latch/lever system.
The Transfer32 comes with one of the best and exclusive features: Dual Drain Technology, consisting of two independent 2” gravity driven drains with four 2” outlets, 2 overflows and 2 drain openers, allowing for a fast and reliable drainage. 2 caps are also included to cover up to 2 of 4 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping provided by a professional plumber. It is suggested to connect all 4 outlets to the house drain for the fastest drainage possible. Typical drainage time is approximately +/- 80 seconds for this standard size tub within ideal in-home plumbing conditions. Ella gravity driven dual drains are fast and reliable because they do not require an electric pump, whereas electrical driven drains may fail due to electrical shorts or power outages.
This model also includes one reversible end panel for left or right corner installation options and one extension panel kit for 60” alcove installations. These panels cover the ends of the tub to give your walk-in tub a completed look. Additional panels can be ordered in the case your tub will be installed to the wall as free standing.
We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.
Warranty (See Downloads)
We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.
Note: LED Chromatherapy light is included with any dual jetting or therapy package.
Examples: air & hydro, hydro & hydro, Hydro & Microbubble therapy
The Transfer32 model offers 5 jetting & therapy options: 1) Hydro; 2) Air & Hydro; 3) Hydro & Microbubble Therapy; 4) Hydro & Independent Foot + Calf Massage; 5) Hydro & Air & Microbubble Therapy. This model is also available in a soaking option without jets.
Please view the descriptions of the different therapy options below, or click on the PDF links to see schematics for easier understanding.
1. Hydro Massage System
Download Schematics: Hydrotherapy Massage System

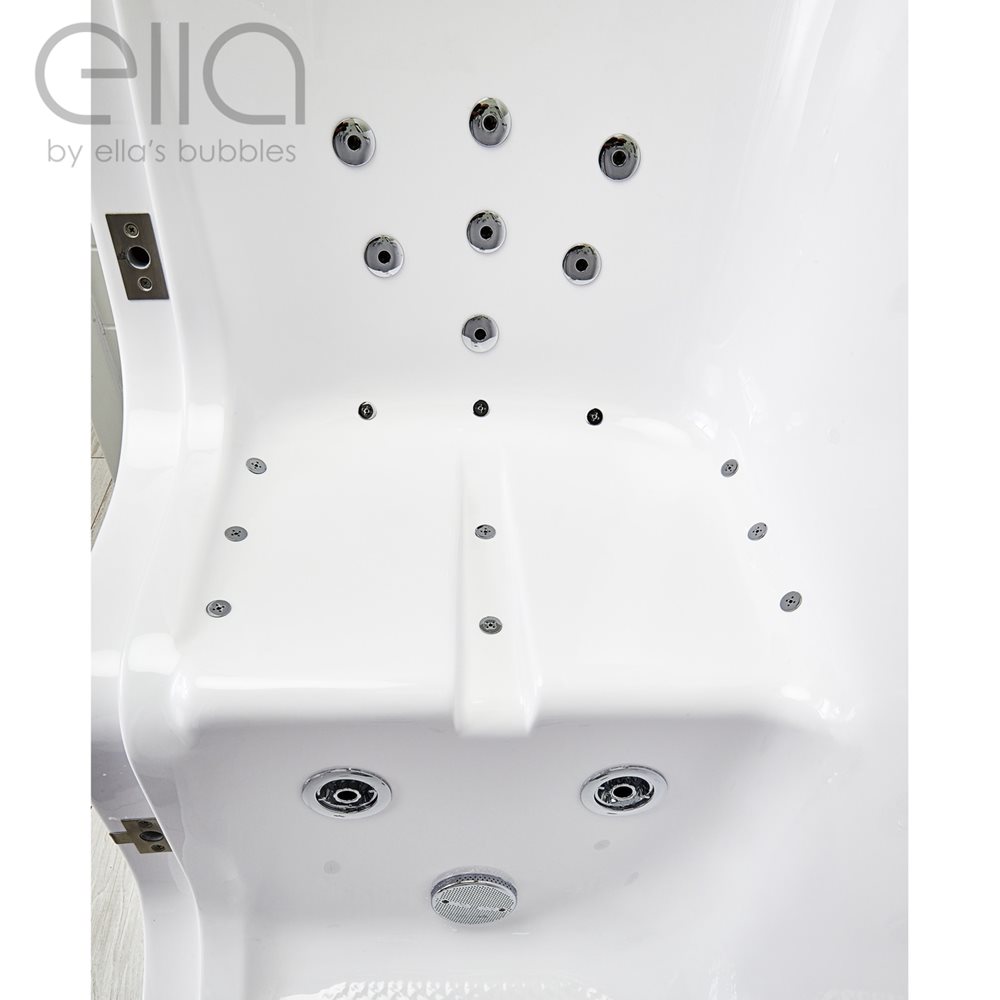

The Transfer32 walk-in tub has thirteen (13) strategically placed hydro jets in order to deliver optimal therapeutic relief. Seven (7) upper fixed jets work to provide relief for your back, hips and thighs, while six (6) lower adjustable jets massage your feet and calves.
The Hydro Massage System includes: a hydro pump with an in-line water heater, an eco-friendly ozone sterilization system, a hydro massage intensity control dial, and a strategically positioned hydro jet system for targeted and effective massaging.
The in-line water heater is designed to maintain the water temperature at a constant level while bathing for maximum comfort. The ozone sterilization system is the most eco-friendly, chemical free disinfectant that can eliminate a wide variety of inorganic, organic, and microbiological bacteria. This sterilization system is especially helpful in eliminating odors and hygienic maintenance.
Lastly, the hydro massage intensity control dial allows you to adjust the strength of the water stream by adding more or less air into the hydro system.
2. Hydro + Air Massage System
Download Schematics: Hydrotherapy + Air Massage System

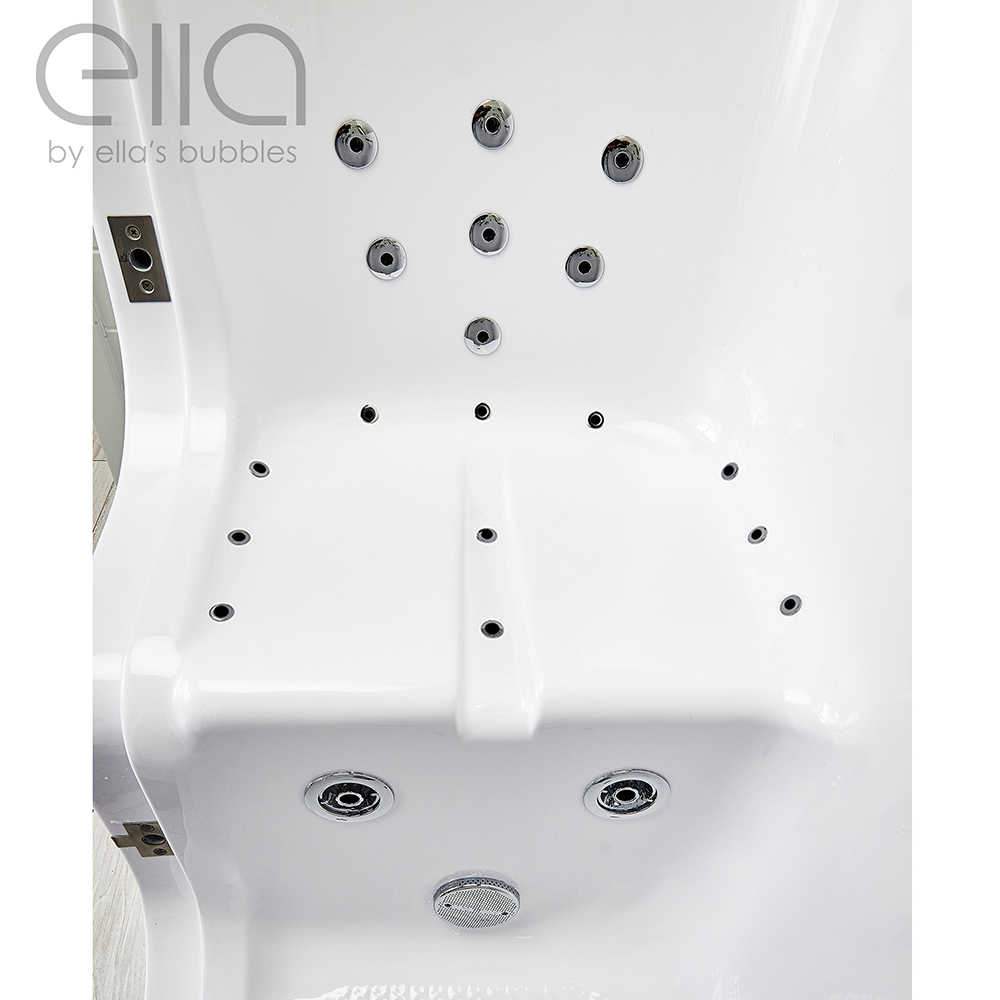

The Transfer32 walk-in tub has seventeen (17) strategically placed air jets in order to deliver rejuvenating therapeutic relief. Eleven (11) upper, fixed flat jets work to provide relief to your back, hips and thighs, while an additional six (6) jets located in the lower foot area deliver a gentle massage to your feet and calves. Additionally, two (2) of the eleven (11) upper jets are bidet jets.The air massage system includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and auto-purge to maintain an air system free of any build ups.
Ella’s Air Jet System includes an Auto Purge System. It automatically activates 20 minutes after completing your bath in order to blow out any excess water and bacteria from the air jet lines. Auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent mildew build up.
3. Hydro + Infusion™ MicroBubble Therapy
Download Schematics: Hydrotherapy Massage + Microbubble Therapy
Ella’s Infusion™ MicroBubble Therapy System consists of a single Microbubble jet connected to a hydro pump and a Microbubble tank system. The high-pressure hydro pump, along with the Microbubble tank, breaks down the water molecules into billions of tiny bubbles which are then sent out through a single jet. At the push of an on/off push control button, this feature can provide a moisturizing, exfoliating therapeutic experience all while detoxifying and relieving skin related issues. For more information about Infusion™ MicroBubble Therapy, click here.
4. Hydro + Independent Hydro Foot Massage System
Download Schematics: Hydrotherapy + Independent Hydro Foot Massage
The Hydro + Independent Foot and Calf Massage package uses two independently run pumps to give bathers a simultaneous full body massage and a powerful foot and calf massage. The strategically positioned upper and lower hydro jets powered by two hydro pumps include an intensity control dial to adjust the strength of the water pressure to your liking from a gentle pressure to a more rigorous Bathers can enjoy an independent foot and calf massage within minutes by simply filling the foot well up the seat level. Please note: if you choose this jetting package, your walk-in bathtub will come with one (1) in-line water heater that will be connected to the lower jets and used with the independent foot massage feature, and an ozone sterilization system connected to the upper jets.
Jetting Options + Heated Seat & Back Option
Download Schematics:
1. Hydrotherapy + Heated Seat & Back
2. Hydrotherapy + Air + Heated Seat & Back
3. Hydrotherapy + Microbubble Therapy + Heated Seat & Back
4. Hydrotherapy + Independent Hydro Foot Massage + Heated Seat & Back
Available as an add-on for all Ella walk-in tubs, the NuWhirls CozyHeat Heated Backrest & Seat system keeps you comfortable and warm while your tub fills. The heating cables are encased in a multi-layer mesh blanket and bonded together through a heat press process, ensuring excellent mechanical strength and a durable, long-lasting design. Advanced radiant heaters provide soothing comfort directly to the surface, enabling a heated seat and backrest. With its warm touch, it delivers the ultimate in comfort, relaxation, and health benefits. Operated by either an on/off Push Control or a Digital Control, the heated backrest and seat activate in minutes, keeping users cozy and relaxed from the moment they enter the tub.Heated Seat & Back (Optional)
1. Ella 5 Piece Fast Fill Faucet

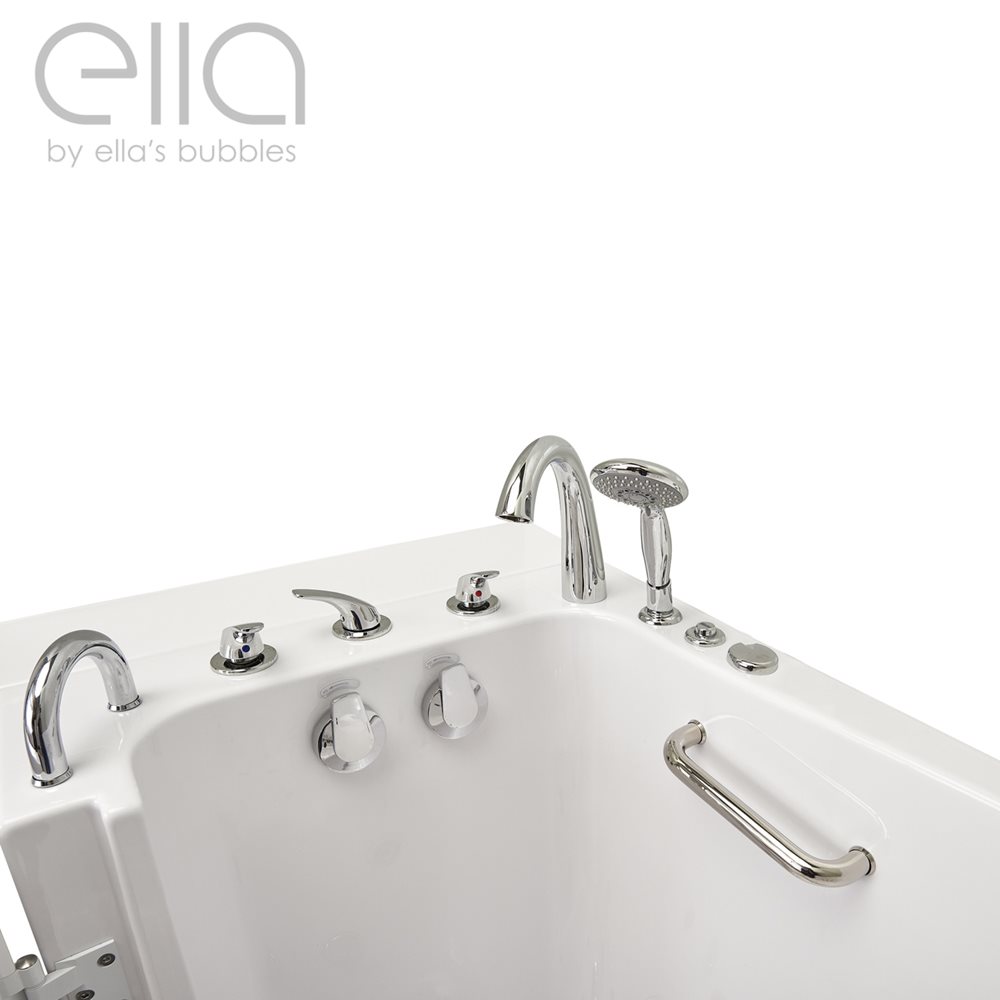

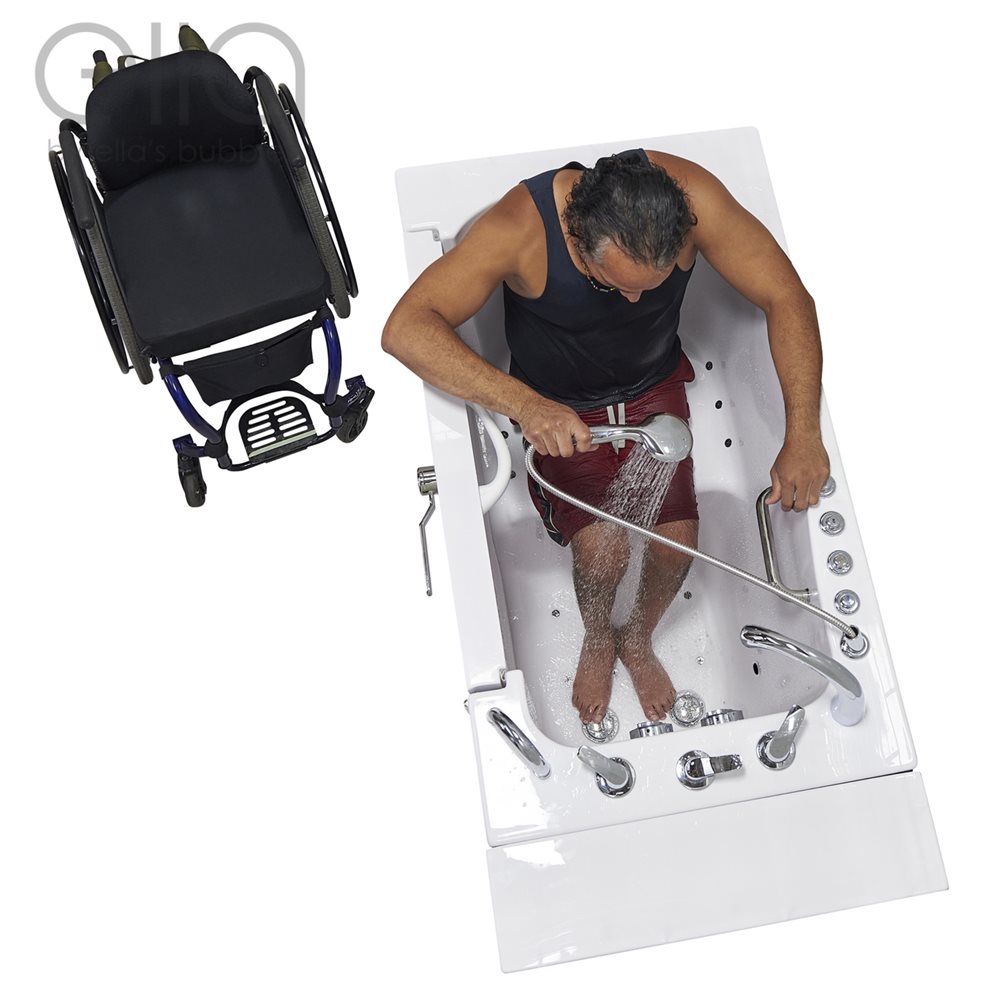

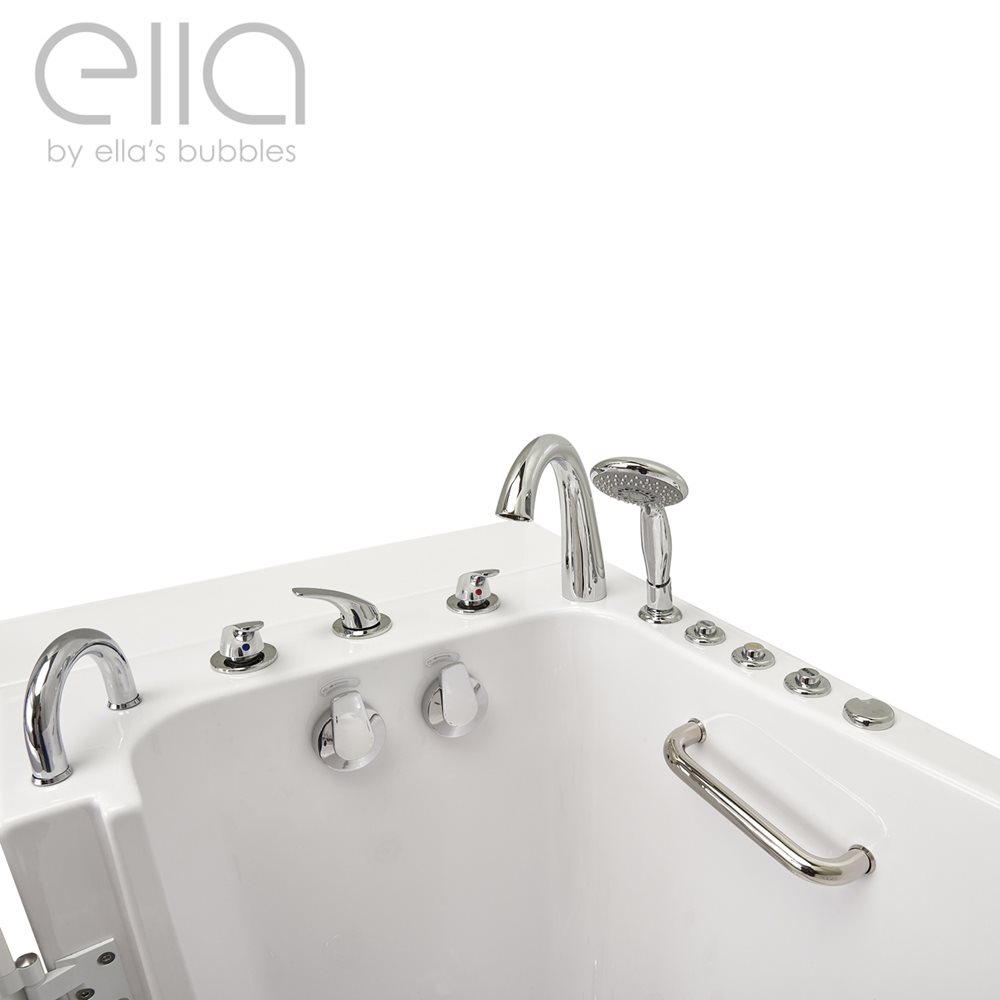

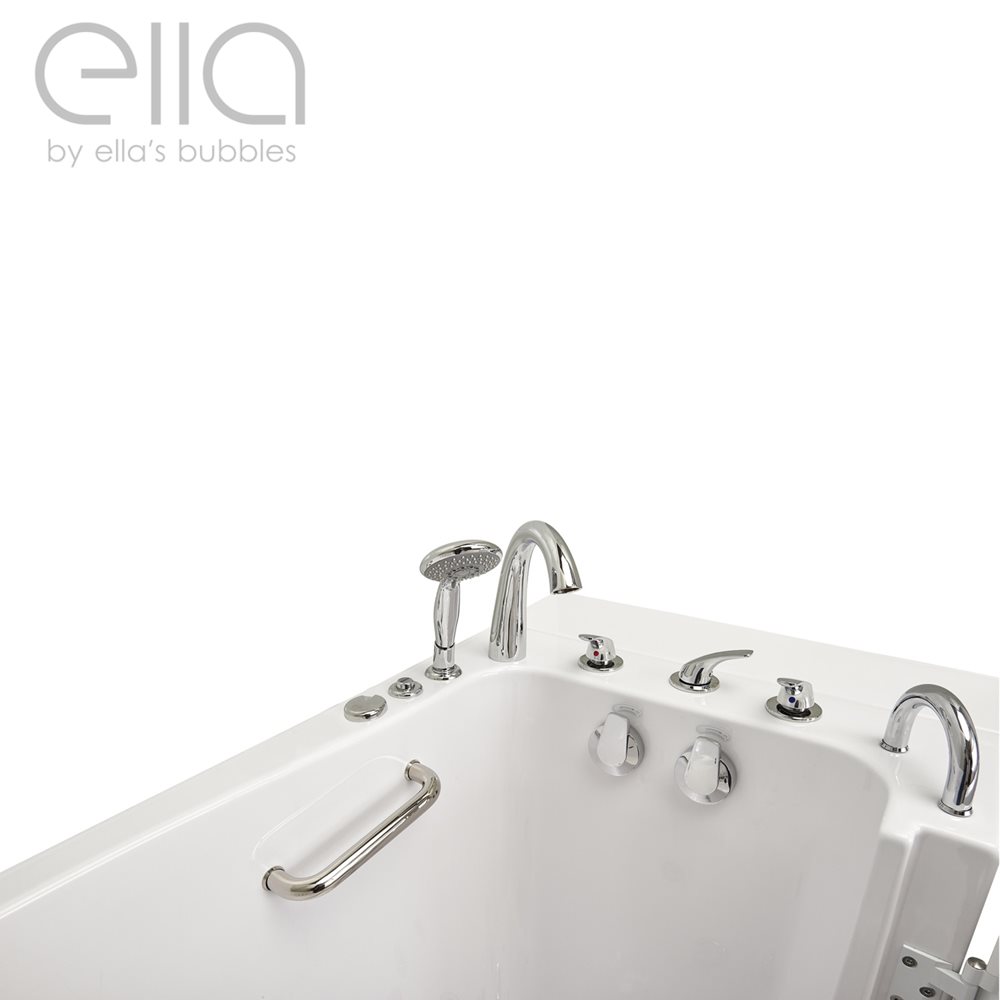

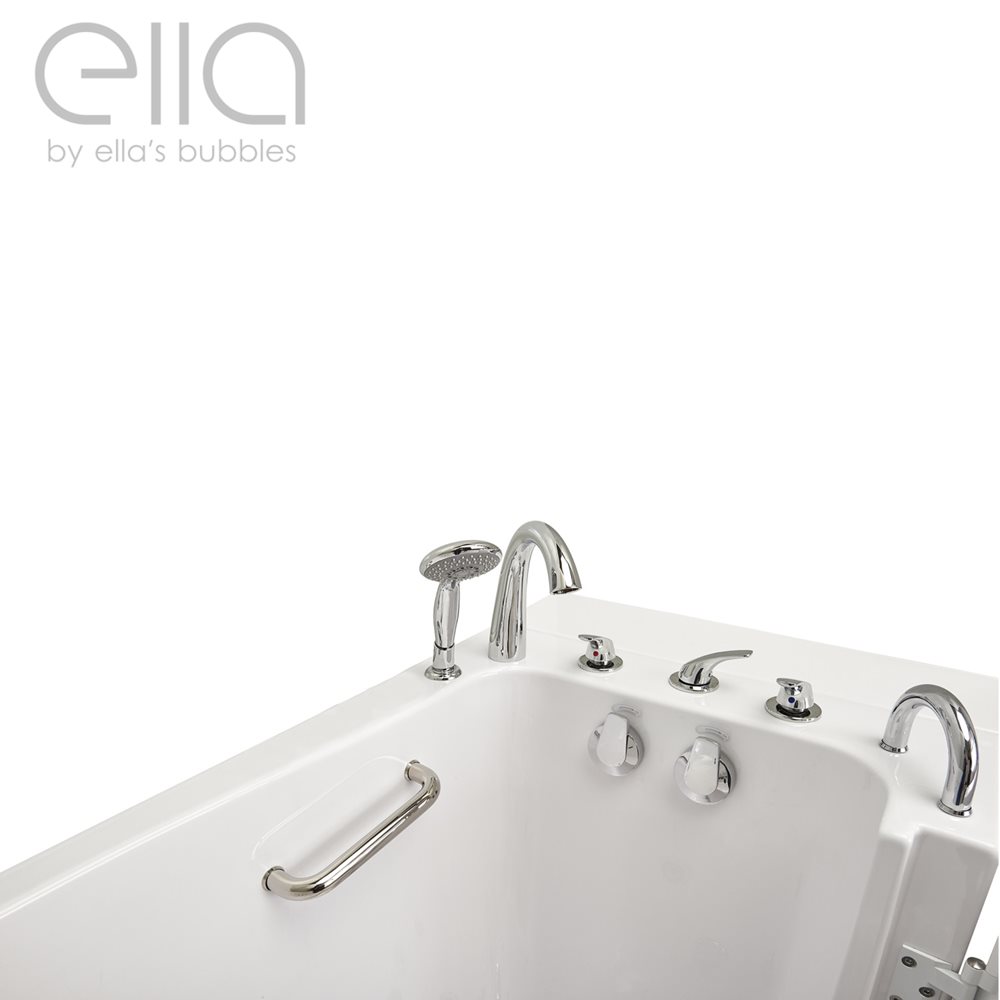

The Ella 5 Piece ¾” Fast Fill Faucet with pull out multi-function hand shower in chrome finish is perfect for your walk-in bathtub or any bathtub where fill time matters. The fast fill 5-piece fills at a rate of up to 18 GPM (gallons per minute) based on in house plumbing conditions. If desired, the pull-out hand shower can be used for showering while the bathtub is filled to stay warm. Available in a Chrome or Brushed Nickel finish.
Disclaimer: Only the faucet can be ordered in brushed nickel. All other fixtures, including jets, drain openers, and grab bars, will be in chrome.
2. Complete Shower Column Kit For Deck Mounted Faucets
The Shower Column Kit connects to a diverter on an Ella brand 2 or 5 piece deck mounted faucet in order to create an extended overhead shower. The stainless steel, chrome finish column can be effortlessly adjusted up to 7 feet tall. Along the column is a vertically movable, 5 mode multi-functional hand shower, and attached at the top is an oversize rain shower that can be directed with ease to the seat for a seated shower or footwell for a stand up shower. This shower column kit replaces the need for a wall-mounted showerhead.
1. Heated Seat & Back
Available on all Ella walk-in tubs, the NuWhirls CozyHeat Heated Backrest & Seat system helps keep you comfortable and warm while your tub fills. The heating cables are encased in a multi-layer mesh blanket, bonded together through a heat press process, providing excellent mechanical strength and a long lasting, durable design. Advanced radiant heaters provide soothing comfort directly to the surface, allowing for a heated seat and backrest. With its warm touch, it delivers the ultimate in comfort, relaxation, and health benefits. Operated by an on/off Push Control or Digital Control, the heated backrest and seat is activated in minutes, keeping users cozy and relaxed from the moment they enter the tub.
